This item is Discontinued.

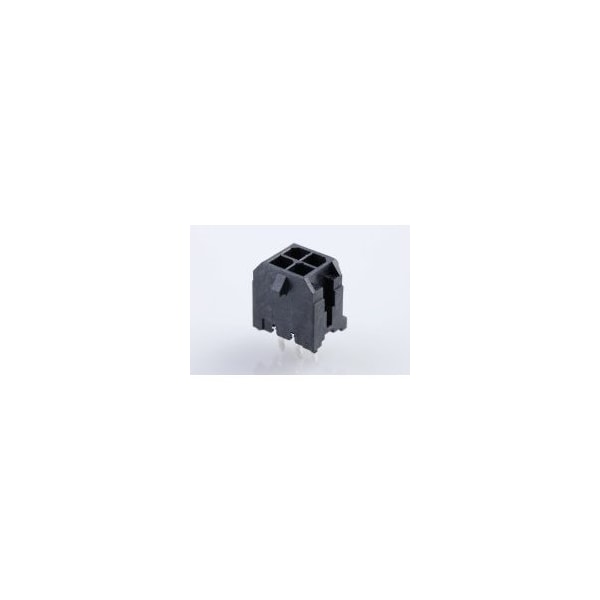

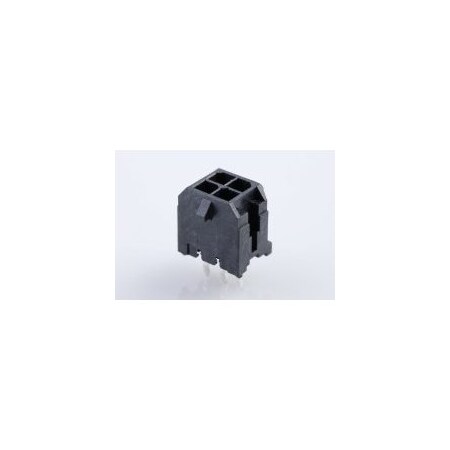

Molex Microfit 3.0 Vert ThruHole DR Sn 4Ckt 43045-0483

Microfit 3.0 Vert ThruHole DR Sn 4Ckt (Discontinued)

  • Mfr # 43045-0483
  • Zoro # G4038882
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
43045-0483
Zoro #
G4038882
UPC #
-
Country of Origin
Mexico

Dimensions

PCB Thickness - Recommended
1.60mm

Details

Material - Metal
Brass
Current - Maximum per Contact
8.5A
Glow-Wire Capable
Yes
Pitch - Mating Interface
3.00mm
PCB Retention
Yes
Circuits (Loaded)
4
Process Temperature max. C
260
Polarized to PCB
Yes
Surface Mount Compatible (SMC)
Yes
Temperature Range - Operating
-40° to +105°C
Shrouded
Fully
PCB Locator
Yes
Number of Rows
2
Plating min - Mating
5.080µm
Max. Cycles at Max. Process Temperature
3
Material - Plating Mating
Matte Tin
Voltage - Maximum
600V
Termination Interface: Style
Through Hole - Kinked Pin
UL
E29179
Duration at Max. Process Temperature (seconds)
30
Material - Plating Termination
Matte Tin
Durability (mating cycles max)
30
Orientation
Vertical
Flammability
94V-0
CSA
LR19980
Circuits (maximum)
4
Color - Resin
Black
Material - Resin
High Temperature Thermoplastic
