  9. Mini-Fit Cpi Hdr For .094Pcb 4Ckt Gold
This item is Discontinued.

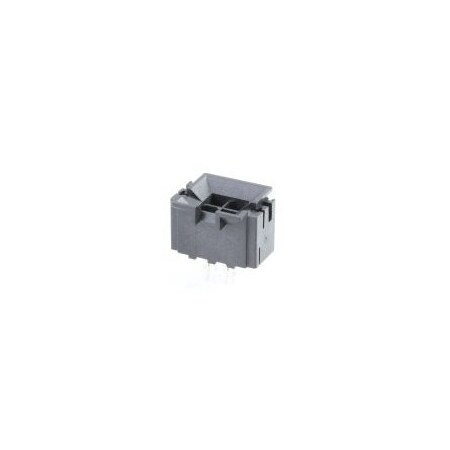

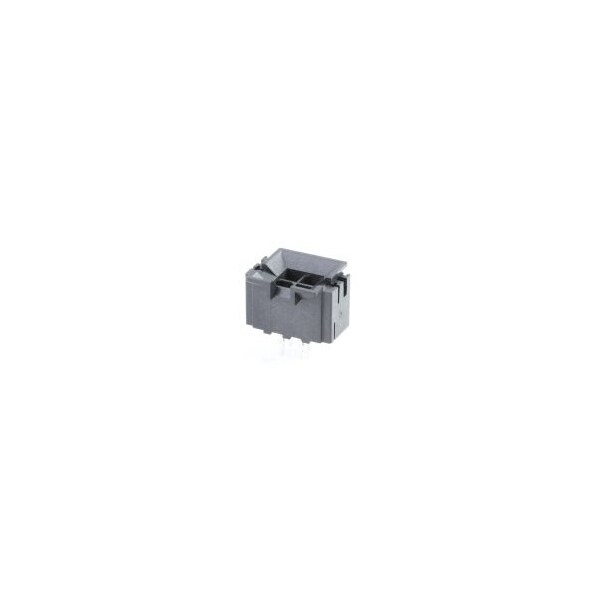

Molex Mini-Fit Cpi Hdr For .094Pcb 4Ckt Gold 438790055

Mini-Fit Cpi Hdr For .094Pcb 4Ckt Gold (Discontinued)

  • Mfr # 438790055
  • Zoro # G005910240
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
438790055
Zoro #
G005910240
UPC #
-
Country of Origin
Mexico

Dimensions

Contact Plating Thickness
0.762 µm
PC Tail Length
6.25mm

Details

Number of Rows
2
Standards
CSA Certified; UL E29179
Material
High Temperature Thermoplastic
Color
Black
Application
Board-to-Board, Power, Wire-to-Board
Features
Surface Mount Compatible
Terminal Finish
Tin Plated
Max. Voltage
600V AC/DC
Hole Center to Center
4.2 mm
Max. Temp.
105°C
Flammability Rating
UL 94V-0
Number of Contacts
4
Contact Finish
Gold Plated
Terminal Type
Through Hole - Compliant Pin
Current Rating
8 A
Temperature Range - Operating
-40° to +105°C
Current - Maximum per Contact
8.0A
Material - Metal
Brass, Phosphor Bronze
Material - Plating Termination
Tin
Polarized to Mating Part
Yes
PCB Locator
Yes
First Mate / Last Break
No
Component Type
PCB Header
Orientation
Vertical
Durability (mating cycles max)
30
Polarized to PCB
No
Product Name
Mini-Fit BMI
Material - Plating Mating
Gold
CSA
LR19980
Stackable
No
Lock to Mating Part
Yes
Series
43879
Plating min - Mating
0.762µm
Circuits (Loaded)
4
UL
E29179
Flammability
94V-0
Shrouded
Fully
Breakaway
No
Glow-Wire Capable
No
Material - Resin
High Temperature Thermoplastic
Keying to Mating Part
None
Pitch - Mating Interface
4.20mm
PCB Retention
Yes
Voltage - Maximum
600V AC (RMS)/DC
Guide to Mating Part
No
