This item is Discontinued.

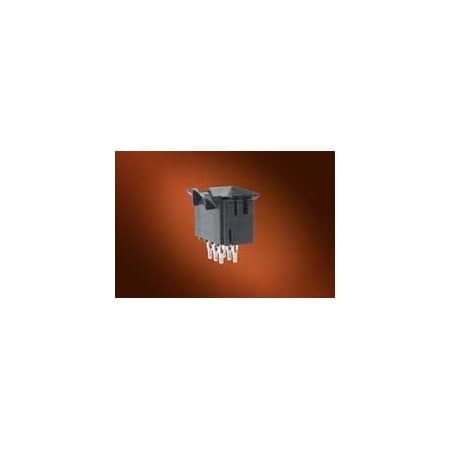

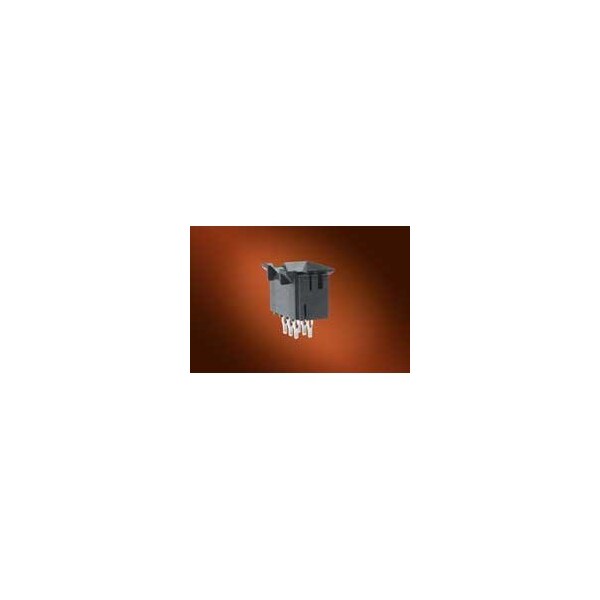

Molex Mini-Fit CPI Hdr for .094PCB 6Ckt GOLD 43879-0056

Mini-Fit CPI Hdr for .094PCB 6Ckt GOLD (Discontinued)

  • Mfr # 43879-0056
  • Zoro # G4043344
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
43879-0056
Zoro #
G4043344
UPC #
-
Country of Origin
Mexico

Dimensions

PC Tail Length
6.25mm

Details

Material - Metal
Brass, Phosphor Bronze
Voltage - Maximum
600V AC (RMS)/DC
Material - Plating Termination
Tin
Polarized to Mating Part
Yes
Surface Mount Compatible (SMC)
Yes
Color - Resin
Black
Termination Interface: Style
Through Hole - Compliant Pin
Plating min - Mating
0.762µm
UL
E29179
Durability (mating cycles max)
30
Shrouded
Fully
Orientation
Vertical
CSA
LR19980
Material - Plating Mating
Gold
Flammability
94V-0
Number of Rows
2
Current - Maximum per Contact
8.0A
Pitch - Mating Interface
4.20mm
Temperature Range - Operating
-40° to +105°C
PCB Retention
Yes
Pitch - Termination Interface
4.20mm
Material - Resin
High Temperature Thermoplastic
Circuits (Loaded)
6
Lock to Mating Part
Yes
Circuits (maximum)
6
Plating min - Termination
2.540µm
