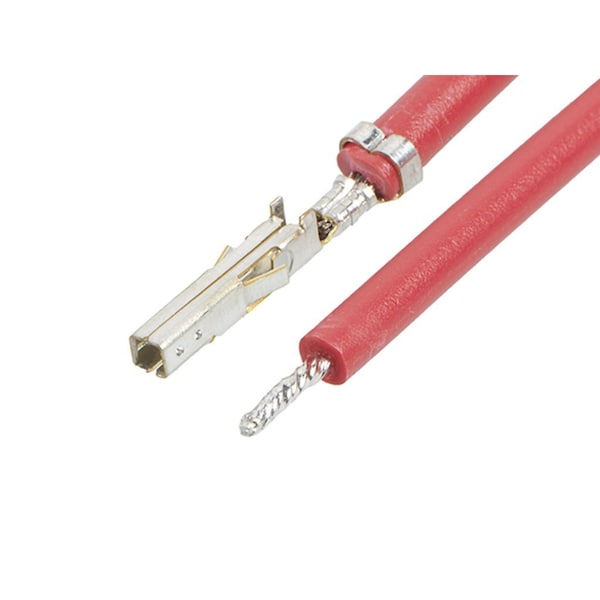

Mini-Fit Jr. F-S 150Mm 18 Awg Rd Sn
Mfr # 2153412112
Zoro # G005922175
product price:Â
$
0.96
/ea
Sold in multiples of 104 for $99.84
Key Features
Application
Power, Wire-to-Board, Wire-to-Wire
Standards
UL 1015
Conductor Material
Brass
Spool Length
150 mm
Voltage
600V
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- 2153412112
- Zoro #
- G005922175
- UPC #
- -
- Country of Origin
- India
Dimensions
- Spool Length
- 150 mm
- Wire Insulation Diameter
- 1.80-3.10mm
- Wire Size (AWG)
- 18
- Cable Length
- 150.00mm
Details
- Application
- Power, Wire-to-Board, Wire-to-Wire
- Standards
- UL 1015
- Conductor Material
- Brass
- Voltage
- 600V
- Wire Gauge
- 18 AWG
- Jacket Color
- Red
- Max. Amps
- 9 A
- Circuits (Loaded)
- 1
- Connector to Connector
- Mini-Fit Jr. Term-to-Pigtail
- Series
- 215341
- Termination Interface Style
- Crimp or Compression
- Material - Plating Mating
- Tin
- Gender
- Female-Pigtail
- Product Name
- Mini-Fit Jr.
- Single Ended
- Yes
- Material - Plating Termination
- Tin
- Assembly Configuration
- Pre-crimped Lead Only
- Current - Maximum per Contact
- 9.0A
