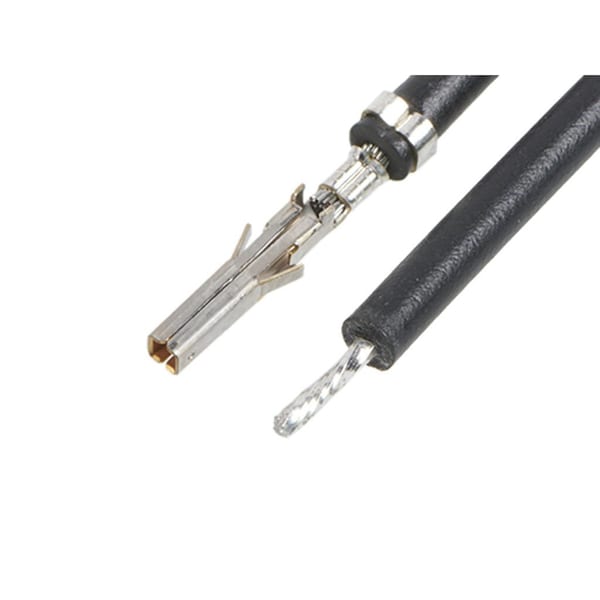

Mini-Fit Jr. F-S 75Mm 16 Awg Bk Au
- Mfr # 2153411221
- Zoro # G905922138
product price:Â
$
1.19
/ea
Sold in multiples of 91 for
$108.29
Key Features
Application
Power, Wire-to-Board, Wire-to-Wire
Conductor Material
Brass
Jacket Color
Black
Max. Amps
9 A
Spool Length
75 mm
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- 2153411221
- Zoro #
- G905922138
- UPC #
- -
- Country of Origin
- Thailand
Dimensions
- Spool Length
- 75 mm
- Wire Size (AWG)
- 16
- Cable Length
- 75.00mm
- Wire Insulation Diameter
- 1.80-3.10mm
Details
- Application
- Power, Wire-to-Board, Wire-to-Wire
- Conductor Material
- Brass
- Jacket Color
- Black
- Max. Amps
- 9 A
- Voltage
- 600V
- Wire Gauge
- 16 AWG
- Standards
- UL 1015
- Material - Plating Termination
- Tin
- Assembly Configuration
- Pre-crimped Lead Only
- Series
- 215341
- Material - Plating Mating
- Gold
- Circuits (Loaded)
- 1
- Single Ended
- Yes
- Current - Maximum per Contact
- 9.0A
- Gender
- Female-Pigtail
- Product Name
- Mini-Fit Jr.
- Termination Interface Style
- Crimp or Compression
- Connector to Connector
- Mini-Fit Jr. Term-to-Pigtail
