Contact our U.S. based teamSpecifications
Product Information
MFR #
2153432225
Zoro #
G705922079
UPC #
-
Country of Origin
Thailand
Dimensions
Spool Length
450 mm
Wire Insulation Diameter
1.80-3.10mm
Wire Size (AWG)
16
Cable Length
450.00mm
Details
Application
Power, Wire-to-Wire
Standards
UL 1015
Jacket Color
Red
Max. Amps
9 A
Wire Gauge
16 AWG
Conductor Material
Brass
Voltage
600V
Circuits (Loaded)
1
Series
215343
Material - Plating Mating
Gold

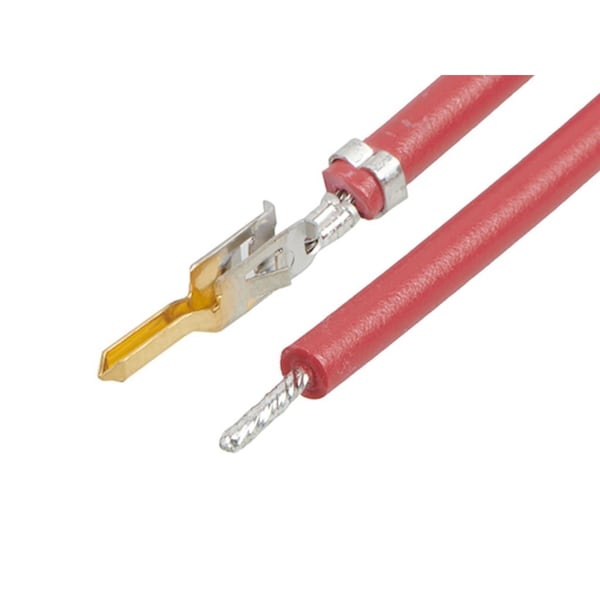

Product Name
Mini-Fit Jr.
Assembly Configuration
Pre-crimped Lead Only
Connector to Connector
Mini-Fit Jr. Term-to-Pigtail
Gender
Male-Pigtail
Current - Maximum per Contact
9.0A
Single Ended
Yes
Termination Interface Style
Crimp or Compression
Material - Plating Termination
Tin
