Shop MOLEX

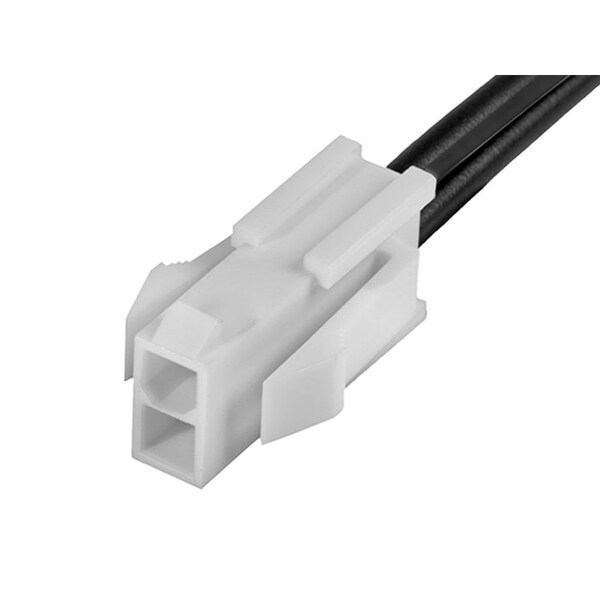

Mini-Fit Jr. Male-To-Mini-Fit Jr. Male Off-The-Shelf (Ots) Cable Assembly

  • Mfr # 2153271021
  • Zoro # G605790006
product price:
$
2.29
/ea
Sold in multiples of 36 for $82.44

Key Features

Color
Black
Series
215327
Max. Voltage
600V
Application
Power, Wire-to-Wire
Length
150 mm
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
2153271021
Zoro #
G605790006
UPC #
-
Country of Origin
India

Dimensions

Length
150 mm
Max. Insulation Dia.
3.1 mm
Contact Plating Thickness
2.54 µm
Wire Insulation Diameter
1.80-3.10mm
Cable Length
150.00mm
Wire Size (AWG)
16

Details

Color
Black
Series
215327
Max. Voltage
600V
Application
Power, Wire-to-Wire
Connector Type
Male-Male
Material
Nylon
Type
Discrete Wire Assembly
Current Rating
9 A
Wire Range
16 AWG
Number of Contacts
2
Contact Finish
Tin Plated
Hole Center to Center
4.2 mm
Terminal Type
Crimp or Compression
Number of Rows
2
Terminal Finish
Tin Plated
Current - Maximum per Contact
9.0A
Single Ended
No
Material - Plating Mating
Tin
Material - Metal
Brass
Pitch - Mating Interface
4.20mm
Overmolded
No
Connector to Connector
Mini-Fit Jr. Both Ends
Assembly Configuration
Dual Ended Connectors
Plating min - Mating
2.540µm
Material - Resin
Nylon
Material - Plating Termination
Tin
Circuits (Loaded)
2
Product Name
Mini-Fit Jr.
Wire/Cable Type
UL 1015
Lock to Mating Part
Yes
