Shop MOLEX

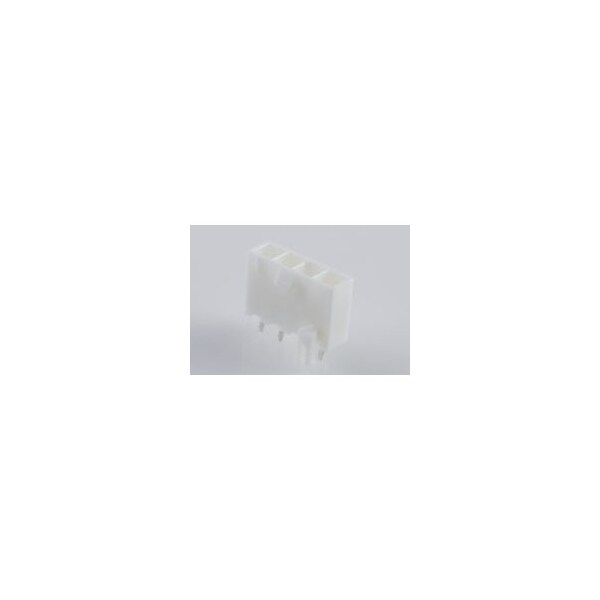

Mini-Fit Jr Vert Hdr Assy 4Ckt V-0 Gold

  • Mfr # 39-30-2042
  • Zoro # G4030248
product price:
$
3.55
/ea
Sold in multiples of 50 for $177.50

Key Features

Lock to Mating Part
Yes
Plating min - Mating
0.762µm
Pitch - Termination Interface
4.20mm
Material - Metal
Brass
UL
E29179
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
39-30-2042
Zoro #
G4030248
UPC #
-
Country of Origin
Mexico

Dimensions

PCB Thickness - Recommended
1.60mm
PC Tail Length
3.50mm

Details

Lock to Mating Part
Yes
Plating min - Mating
0.762µm
Pitch - Termination Interface
4.20mm
Material - Metal
Brass
UL
E29179
Termination Interface: Style
Through Hole
Polarized to PCB
Yes
Color - Resin
Natural
Circuits (Loaded)
4
Process Temperature max. C
240
Orientation
Vertical
Voltage - Maximum
600V
Flammability
94V-0
Current - Maximum per Contact
9.0A
PCB Retention
Yes
Plating min - Termination
2.540µm
Circuits (maximum)
4
PCB Locator
Yes
Material - Plating Termination
Matte Tin
Durability (mating cycles max)
30
Shrouded
Fully
CSA
LR19980
Pitch - Mating Interface
4.20mm
Polarized to Mating Part
Yes
Max. Cycles at Max. Process Temperature
1
Number of Rows
1
Duration at Max. Process Temperature (seconds)
5
Material - Plating Mating
Gold
Material - Resin
Nylon
Temperature Range - Operating
-40° to +105°C
