This item is Discontinued.

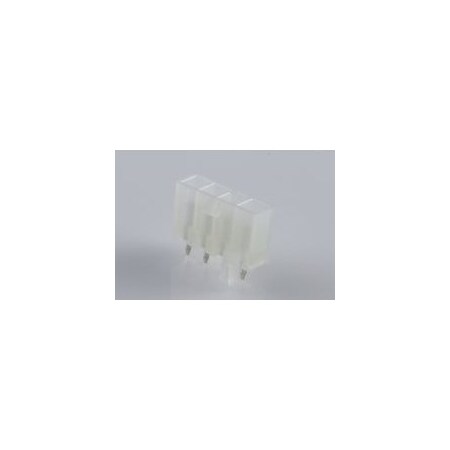

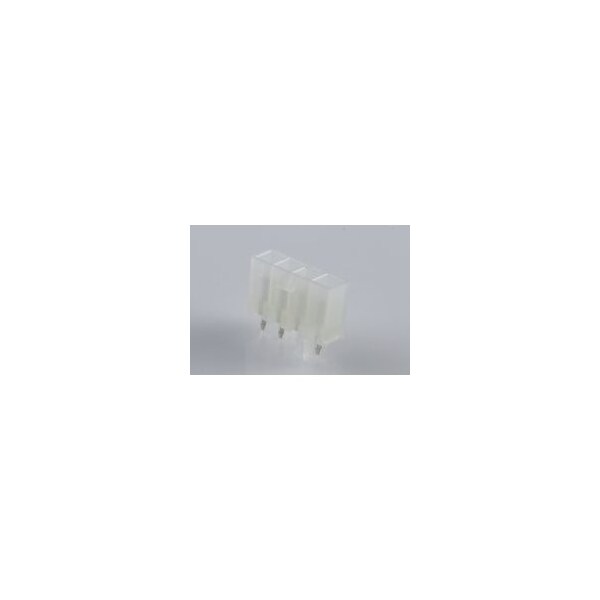

Molex Mini Fit Jr Vert Header Assy w/peg 4ckt 39-30-1049

Mini Fit Jr Vert Header Assy w/peg 4ckt (Discontinued)

  • Mfr # 39-30-1049
  • Zoro # G4044403
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
39-30-1049
Zoro #
G4044403
UPC #
-
Country of Origin
Mexico

Dimensions

PC Tail Length
3.50mm
PCB Thickness - Recommended
1.60mm

Details

Color - Resin
Natural
UL
E29179
PCB Retention
Yes
Durability (mating cycles max)
30
Termination Interface: Style
Through Hole
Current - Maximum per Contact
9.0A
CSA
LR19980
PCB Locator
Yes
Plating min - Mating
0.889µm
Number of Rows
1
Material - Resin
Nylon
Voltage - Maximum
600V
Process Temperature max. C
240
Circuits (Loaded)
4
Pitch - Termination Interface
4.20mm
Orientation
Vertical
Flammability
94V-2
Circuits (maximum)
4
Plating min - Termination
0.889µm
Pitch - Mating Interface
4.20mm
Polarized to PCB
Yes
Shrouded
Fully
Polarized to Mating Part
Yes
Max. Cycles at Max. Process Temperature
1
Lock to Mating Part
Yes
Material - Metal
Brass
Temperature Range - Operating
-40° to +105°C
Material - Plating Termination
Tin
Material - Plating Mating
Tin
Duration at Max. Process Temperature (seconds)
5
