  11. Mini-Fit Sigma 2Ckt R-R 600Mm Disc Sn
This item is Discontinued.

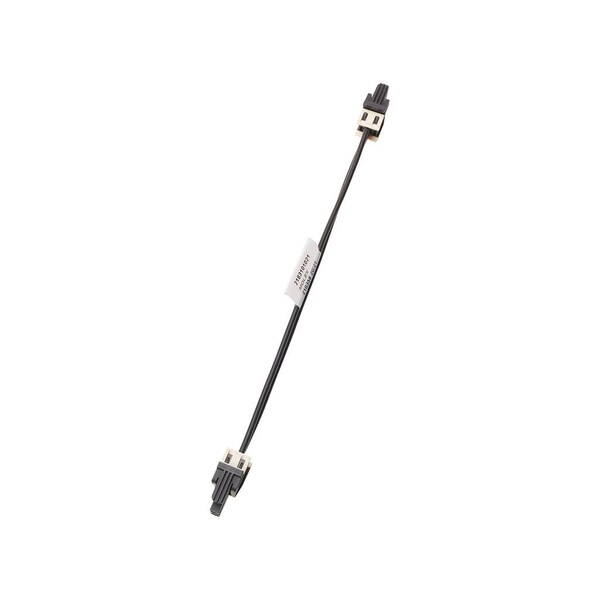

Molex Mini-Fit Sigma 2Ckt R-R 600Mm Disc Sn 2183101023

Mini-Fit Sigma 2Ckt R-R 600Mm Disc Sn (Discontinued)

  • Mfr # 2183101023
  • Zoro # G205926065
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
2183101023
Zoro #
G205926065
UPC #
-
Country of Origin
China

Dimensions

Cable Length
600.00mm
Wire Size (AWG)
16
Wire Insulation Diameter
1.98-2.55mm

Details

Type
Discrete Wire Assembly
Application
Power, Wire-to-Board, Wire-to-Wire
Series
218310
Color - Resin
Black
Voltage - Maximum
600V AC/DC
Wire/Cable Type
UL 11028
Material - Metal
Brass
Termination Interface Style
Crimp or Compression
Lock to Mating Part
Yes
Product Name
Mini-Fit Sigma
Material - Resin
Nylon
Pitch - Mating Interface
4.20mm
Material - Plating Mating
Tin
Number of Rows
2
Material - Plating Termination
Tin
Connector to Connector
Mini-Fit Sigma Both Ends
Circuits (Loaded)
2
Plating min - Mating
2.500µm
Assembly Configuration
Dual Ended Connectors
Current - Maximum per Contact
11.5A
Gender
Female-Female
Single Ended
No
