Shop MOLEX

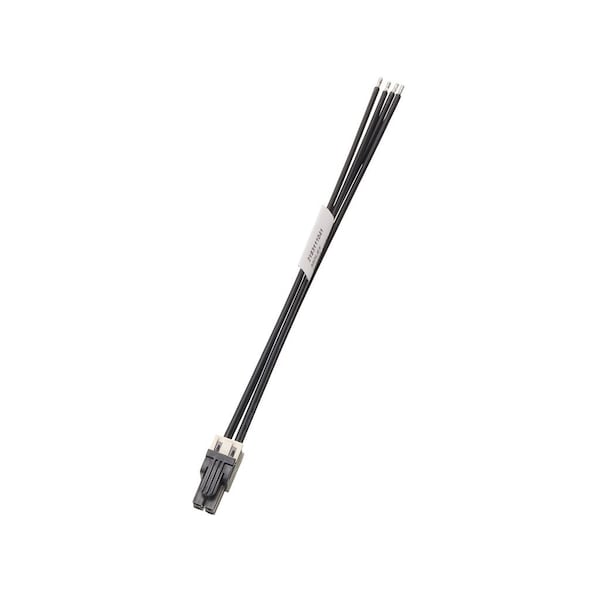

Mini-Fit Sigma 4Ckt R-S 600Mm Disc Sn

  • Mfr # 2183111043
  • Zoro # G405925677
product price:
$
10.45
/ea
Sold in multiples of 10 for $104.50

Key Features

Cable Length
600.00mm
Type
Discrete Wire Assembly
Series
218311
Application
Power, Wire-to-Board, Wire-to-Wire
Material - Resin
Nylon
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
2183111043
Zoro #
G405925677
UPC #
-
Country of Origin
China

Dimensions

Cable Length
600.00mm
Wire Size (AWG)
16
Wire Insulation Diameter
1.98-2.55mm

Details

Type
Discrete Wire Assembly
Series
218311
Application
Power, Wire-to-Board, Wire-to-Wire
Material - Resin
Nylon
Number of Rows
2
Wire/Cable Type
UL 11028
Material - Plating Mating
Tin
Current - Maximum per Contact
11.5A
Product Name
Mini-Fit Sigma
Material - Metal
Brass
Circuits (Loaded)
4
Color - Resin
Black
Lock to Mating Part
Yes
Voltage - Maximum
600V AC/DC
Termination Interface Style
Crimp or Compression
Pitch - Mating Interface
4.20mm
Single Ended
Yes
Gender
Female-Pigtail
Connector to Connector
Mini-Fit Sigma-to-Pigtail
Assembly Configuration
Single Ended Connector
Material - Plating Termination
Tin
Plating min - Mating
2.500µm
