This item is Discontinued.

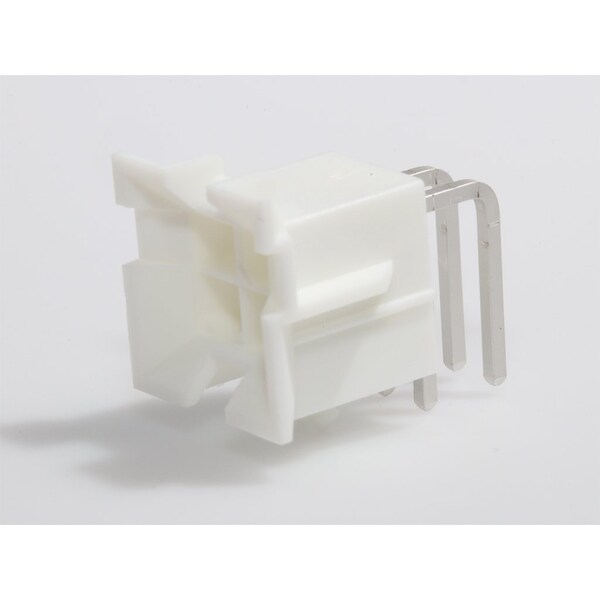

Molex MiniFit BMI RA Header Assy Tin V-0 4Ckt 15-24-9044

MiniFit BMI RA Header Assy Tin V-0 4Ckt (Discontinued)

  • Mfr # 15-24-9044
  • Zoro # G2755469
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
15-24-9044
Zoro #
G2755469
UPC #
-
Country of Origin
Mexico

Dimensions

PCB Thickness - Recommended
1.80mm
PC Tail Length
3.30mm

Details

Shrouded
Partial
PCB Locator
Yes
Guide to Mating Part
Yes
Material - Resin
Nylon
Material - Metal
Brass
UL
E29179
Current - Maximum per Contact
13.0A
Circuits (maximum)
4
Polarized to PCB
Yes
Termination Interface: Style
Through Hole
Material - Plating Mating
Tin
Max. Cycles at Max. Process Temperature
1
Plating min - Mating
2.540µm
Pitch - Mating Interface
4.20mm
Color - Resin
Natural (White)
Lock to Mating Part
Yes
Process Temperature max. C
240
Flammability
94V-0
Durability (mating cycles max)
30
Orientation
Right Angle
Duration at Max. Process Temperature (seconds)
5
Temperature Range - Operating
-40° to +105°C
Polarized to Mating Part
Yes
PCB Retention
Yes
CSA
LR19980
Voltage - Maximum
600V
Number of Rows
2
Plating min - Termination
2.540µm
Material - Plating Termination
Tin
Circuits (Loaded)
4
