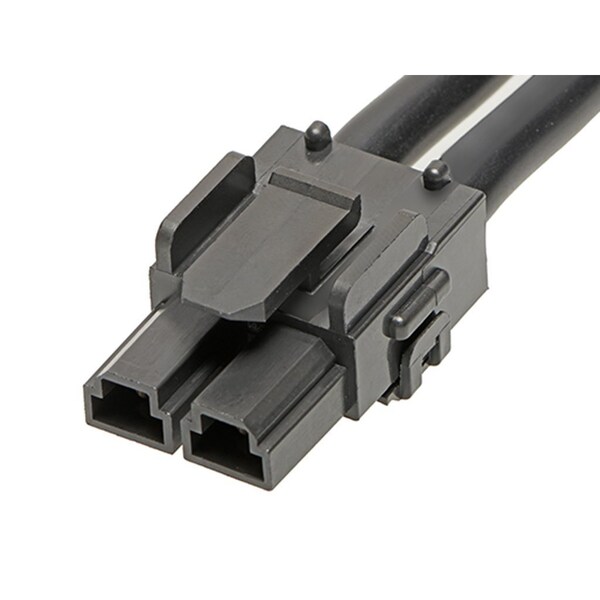

Minifit-Sr 2 Circuit 150Mm

  • Mfr # 369240201

  • Zoro # G905922077


product price: $11.59
/ea
Sold in multiples of 10 for $115.90

Key Features

Max. Amps
50 A
Jacket Color
Black
Standards
UL 1015
Wire Gauge
8 AWG
Conductor Material
High Performance Alloy (HPA)
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
369240201
Zoro #
G905922077
UPC #
-
Country of Origin
India

Dimensions

Spool Length
0.15 m
Cable Length
0.15m
Wire Insulation Diameter
6.60mm max.
Wire Size (AWG)
8

Details

Max. Amps
50 A
Jacket Color
Black
Standards
UL 1015
Wire Gauge
8 AWG
Conductor Material
High Performance Alloy (HPA)
Circuits (Loaded)
2
Material - Plating Mating
Gold
Type
Discrete Wire Assembly, High-Power Assembly
Termination Interface Style
Crimp or Compression
Lock to Mating Part
Yes
Gender
Female-Female
Series
36924
Pitch - Mating Interface
10.00mm
Assembly Configuration
Dual Ended Connectors
Connector to Connector
Mini-Fit Sr.-to-Mini-Fit Sr.
Plating min - Mating
0.762µm
Overmolded
No
Product Name
Mini-Fit Sr.
Single Ended
No
Application
Power, Wire-to-Board, Wire-to-Wire
Current - Maximum per Contact
50.0A
Material - Plating Termination
Tin
Number of Rows
1
Material - Resin
Polyester
Voltage - Maximum
600V AC/DC
