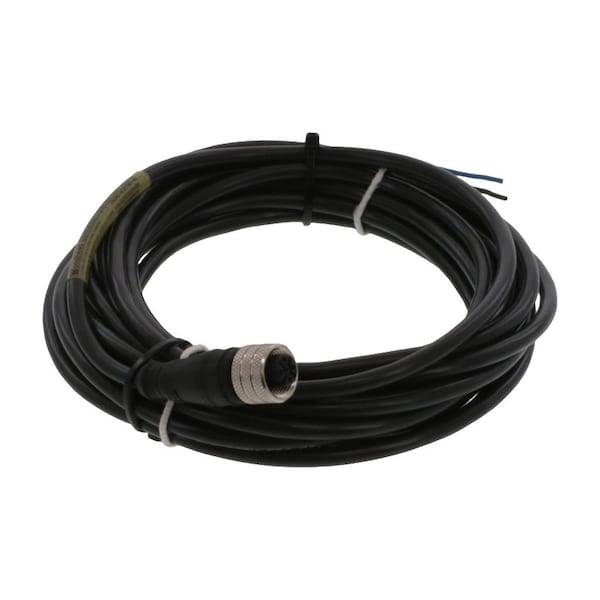

MMC-4P-5W-FE-ST-2M-PUR-LSOH

  • Mfr # 1200658178

  • Zoro # G800440164


product price: $39.19
/ea
Sold in multiples of 2 for $78.38

Key Features

Cable Length
2.0m (6.56')
IP Rating
IP67
Type
Single Ended
Series
120065
Keyway
Single
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
1200658178
Zoro #
G800440164
UPC #
-
Country of Origin
Unknown

Dimensions

Cable Length
2.0m (6.56')
Cable Diameter
4.70mm (.185")
Wire Size (AWG)
22
Wire Size
22 AWG

Details

IP Rating
IP67
Type
Single Ended
Series
120065
Keyway
Single
Orientation
Straight to Pigtail
Material - Cable Jacket
PUR
Wire/Cable Type
UL 21198
Material - Connector Body
PUR
Current - Maximum per Contact
4.0A
Temperature Range - Operating
-25°C to +80°C
Material - Plating Mating
Gold
Color - Cable Jacket
Black
Poles
4
Material - O-Ring
Fluoro-elastomer
Gender
Female-Pigtail
Voltage - Maximum
250V AC/DC
Material - Coupling Nut
Nickel-plated Brass
LED Indicator
No
UL
E152210
Coupling Style
Threaded
Product Name
Micro-Change (M12)
Connector End A
Micro-Change (M12)
Material - Contact
Copper Alloy
Connector End B
Pigtail
Cable Jacket Color
Black
Item
Cordset
