Shop MOLEX

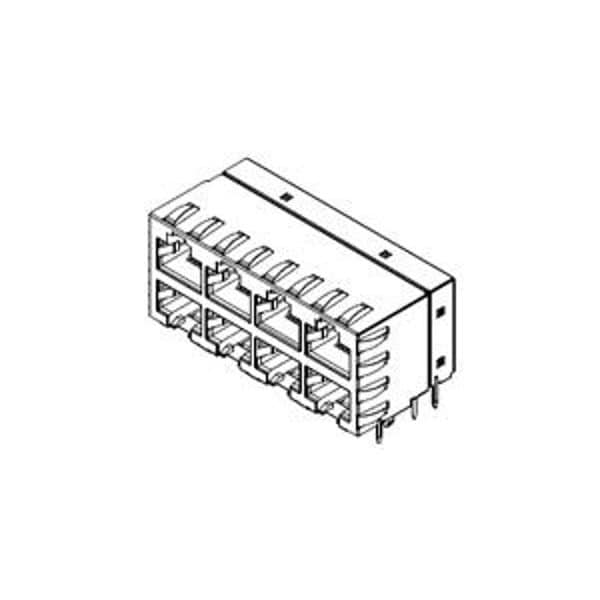

Modular Connectors / Ethernet Connectors Modjack Cat5 Stackd 50 Sau 8 Port

  • Mfr # 445200004

  • Zoro # G705930142

product price:
$
25.59
/ea
Sold in multiples of 3 for $76.77

Key Features

Series
44520
Shielded
Yes
Orientation
Right Angle (Side Entry)
CSA
LR19980
Performance Category
5, 5e
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
445200004
Zoro #
G705930142
UPC #
-
Country of Origin
China

Dimensions

PCB Thickness - Recommended
1.60mm
Jack Height
25.41mm

Details

Series
44520
Shielded
Yes
Orientation
Right Angle (Side Entry)
CSA
LR19980
Performance Category
5, 5e
Inverted / Top Latch
Yes
Product Name
Modular Jack 8/8,RJ45
Port Configuration
2x4
UL
E107635
Color - Resin
Black
Positions / Loaded Contacts
8/8
Termination Interface Style
Through Hole
Durability (mating cycles max)
500
Component Type
PCB Jack
Flammability
94V-0
Material - Plating Mating
Gold
Temperature Range - Operating
-40° to +80°C
Material - Plating Termination
Tin
Current - Maximum per Contact
1.5A
Voltage - Maximum
125V
Material - Resin
Polyester
Material - Metal
Brass, Phosphor Bronze
PCB Retention
Yes
Magnetic
No
Pitch - Mating Interface
1.02mm
Plating min - Mating
1.270µm
