Shop MOLEX

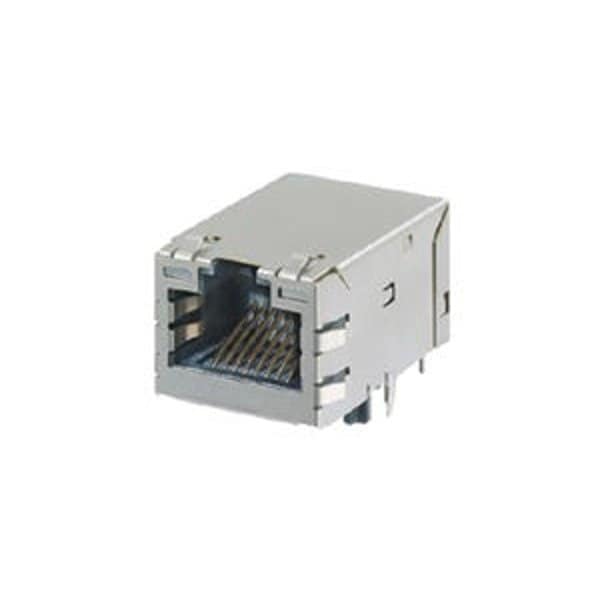

Modular Connectors / Ethernet Connectors Mxmag Fstenet 4Core Inv W/Led Grn/Ylw

  • Mfr # 937678126
  • Zoro # G405930213
product price:
$
6.25
/ea
Sold in multiples of 107 for $668.75

Key Features

Series
93767
Depth
25.40mm
Durability (mating cycles max)
2500
Voltage - Maximum
125V
Material - Plating Mating
Gold over Palladium Nickel
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
937678126
Zoro #
G405930213
UPC #
-
Country of Origin
China

Dimensions

Depth
25.40mm
Jack Height
14.10mm
PCB Thickness - Recommended
1.57mm

Details

Series
93767
Durability (mating cycles max)
2500
Voltage - Maximum
125V
Material - Plating Mating
Gold over Palladium Nickel
Performance Category
100Mb
Positions / Loaded Contacts
8/8
Grounding to PCB
Yes
Port Configuration
1x1
Lightpipes/LEDs
LEDs
Power over Ethernet (PoE)
Non-PoE
Panel Mount
Spring Tabs
Orientation
Right Angle (Side Entry)
Component Type
PCB Jack
Material - Metal
Phosphor Bronze
Magnetic
Yes
Termination Interface Style
Through Hole
Material - Plating Termination
Tin
PCB Retention
None
Shielded
Yes
Grounding to Panel
Yes
Inverted / Top Latch
Yes
Plating min - Mating
0.051µm (Au), 1.016µm (PdNi)
PCB Locator
Yes
Keying to Mating Part
None
Product Name
Magnetic Jack,MXMag,RJ45
Color - Resin
Black
Temperature Range - Operating
-40° to +85°C
Current - Maximum per Contact
0.5A
Material - Resin
Liquid Crystal Polymer
