This item is Discontinued.

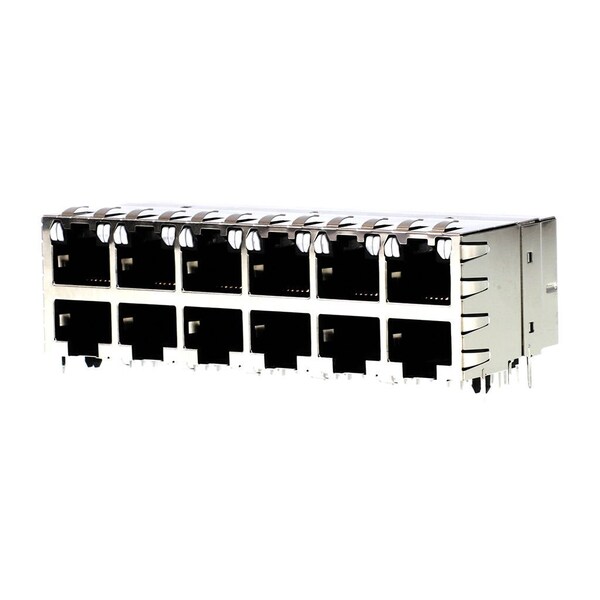

Molex Modular Connectors / Ethernet Connectors Ra Shlded Mod Jack Stacked 8/8 12P 441700002

Modular Connectors / Ethernet Connectors Ra Shlded Mod Jack Stacked 8/8 12P (Discontinued)

  • Mfr # 441700002
  • Zoro # G905930065
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
441700002
Zoro #
G905930065
UPC #
-
Country of Origin
China

Dimensions

Jack Height
25.41mm
PCB Thickness - Recommended
1.60mm

Details

Series
44170
Material - Metal
Brass, Phosphor Bronze
Durability (mating cycles max)
500
Shielded
Yes
Material - Plating Termination
Tin
PCB Retention
Yes
Color - Resin
Black, Clear
Current - Maximum per Contact
1.5A
Termination Interface Style
Through Hole
CSA
LR19980
Voltage - Maximum
125V
Plating min - Mating
1.270µm
Product Name
Modular Jack 8/8,RJ45
Port Configuration
2x6
Performance Category
5, 5e
UL
E107635
Component Type
PCB Jack
Positions / Loaded Contacts
8/8
Inverted / Top Latch
Yes
Magnetic
No
Material - Plating Mating
Gold
Lightpipes/LEDs
Lightpipes
Pitch - Mating Interface
1.02mm
Temperature Range - Operating
-40° to +80°C
Material - Resin
Polycarbonate, Polyester
Flammability
94V-0
Orientation
Right Angle (Side Entry)
