  11. Nanofit Hdr Vt Dlr Knk 10Ckt 30Au Nat

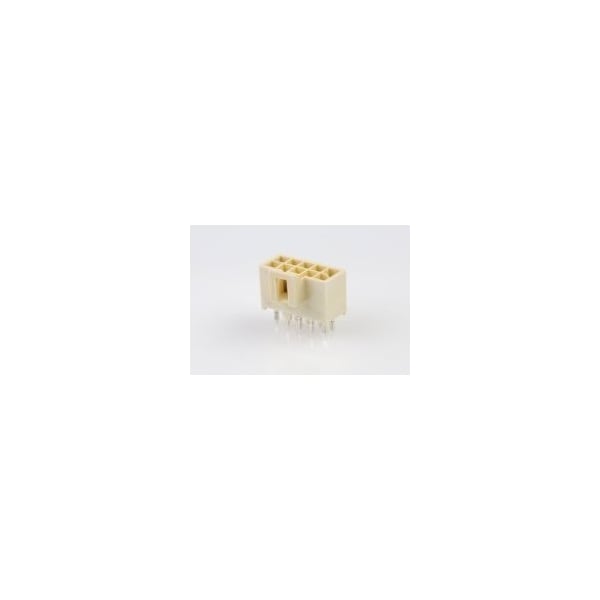

Molex Nanofit Hdr Vt Dlr Knk 10Ckt 30Au Nat 1053102310 - main

Nanofit Hdr Vt Dlr Knk 10Ckt 30Au Nat

  • Mfr # 1053102310

  • Zoro # G605783541

product price: $3.45
/ea
Sold in multiples of 25 for $86.25

Key Features

Color
Natural
Max. Voltage
250V AC/DC
Application
Power, Wire-to-Board
Series
105310
Standards
CSA Certified; UL E29179
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
1053102310
Zoro #
G605783541
UPC #
-
Country of Origin
China

Dimensions

Contact Plating Thickness
0.762 µm
PCB Thickness - Recommended
1.60mm, 2.40mm
PC Tail Length
3.20mm

Details

Color
Natural
Max. Voltage
250V AC/DC
Application
Power, Wire-to-Board
Series
105310
Standards
CSA Certified; UL E29179
UL 94 Flammability Rating
V-0
Material
Liquid Crystal Polymer
Number of Contacts
10
Max. Temp.
115°C
Current Rating
7.5 A
Number of Rows
2
Contact Finish
Gold Plated
Terminal Type
Through Hole
Features
Glow-Wire Capable
Hole Center to Center
2.5 mm
Terminal Finish
Tin Plated
Flammability Rating
UL 94V-0
Current - Maximum per Contact
7.5A
Guide to Mating Part
No
Flammability
94V-0
Material - Plating Termination
Tin
PCB Retention
Yes
Material - Metal
Brass
Material - Resin
Liquid Crystal Polymer
Product Name
Nano-Fit
Orientation
Vertical
Pitch - Mating Interface
2.50mm
Polarized to Mating Part
Yes
Circuits (Loaded)
10
Voltage - Maximum
250V AC (RMS)/DC
CSA
LR19980
PCB Locator
Yes
Durability (mating cycles max)
50
Material - Plating Mating
Gold
Glow-Wire Capable
Yes
Shrouded
Yes
Plating min - Mating
0.762µm
Keying to Mating Part
Yes
Breakaway
No
Polarized to PCB
Yes
Component Type
PCB Header
Temperature Range - Operating
-40° to +115°C
Stackable
No
Lock to Mating Part
Yes
UL
E29179
