This item is Discontinued.

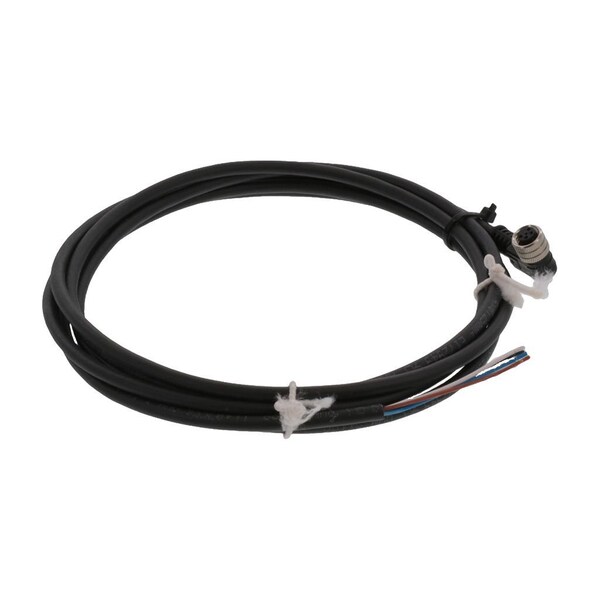

Molex NC-3P-FE-90-10M-PUR-0.25 1200868004

NC-3P-FE-90-10M-PUR-0.25 (Discontinued)

  • Mfr # 1200868004
  • Zoro # G200440214
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
1200868004
Zoro #
G200440214
UPC #
-
Country of Origin
Unknown

Dimensions

Cable Length
10.0m (32.81')
Wire Size (AWG)
24
Cable Diameter
4.10mm (.161")

Details

IP Rating
IP67
Orientation
90° to Pigtail
Type
Single Ended
Keyway
A-coded
Series
120086
Poles
3
Coupling Style
Threaded
Material - O-Ring
Fluoro-elastomer
UL
E152210
Temperature Range - Operating
-25°C to +80°C
Current - Maximum per Contact
3.0A
Color - Cable Jacket
Black
Material - Coupling Nut
Nickel-plated Brass
Material - Cable Jacket
PUR
Gender
Female-Pigtail
Wire/Cable Type
UL 21198
Material - Plating Mating
Gold
Voltage - Maximum
30V
Material - Connector Body
PUR
LED Indicator
No
Material - Contact
Copper Alloy
Connector End A
Nano-Change (M8)
Product Name
Nano-Change (M8)
Connector End B
Pigtail
