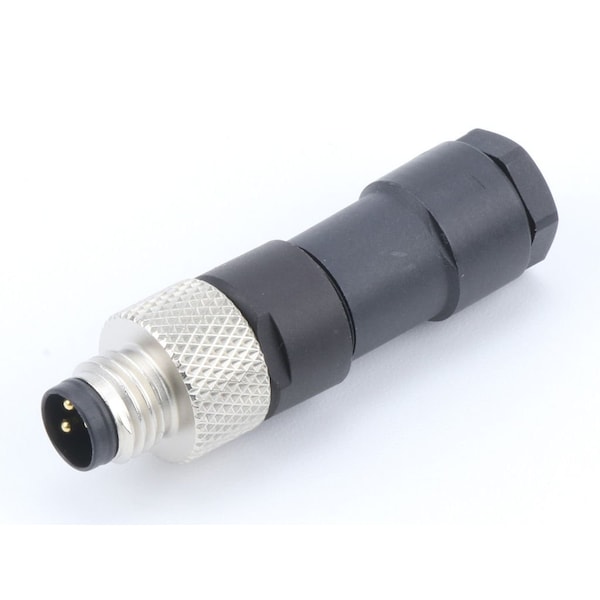

NC 3P M/M-ATTACH STR
Mfr # 1200910004
Zoro # G2076721
product price: $38.29
/eaSold in multiples of 3 for $114.87
Key Features
Orientation
Straight
Material - Connector Body
Polyamide
Keyway
None
Temperature Range - Operating
0°C to +80°C
Voltage - Maximum
60V AC / 75V DC
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
1200910004
Zoro #
G2076721
UPC #
-
Country of Origin
Mexico
Dimensions
Cable Diameter
3.50-5.00mm (.138-.197")
Details
Orientation
Straight
Material - Connector Body
Polyamide
Keyway
None
Temperature Range - Operating
0°C to +80°C
Voltage - Maximum
60V AC / 75V DC
Material - Coupling Nut
Nickel-plated Brass
Coupling Type
External Thread
Gender
Male
Poles
3
Current - Maximum per Contact
4.0A
Material - Plating Mating
Gold
Material - Contact
Brass
Series
120091
IP Rating
IP67
Diagnostics / LEDs
No
Type
Field Attachable Connector
Product Name
Nano-Change (M8)
Description
