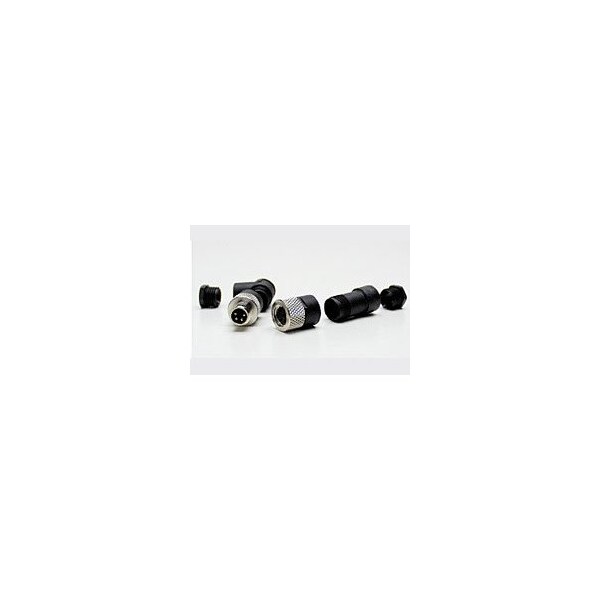

NC 4P M/M-ATTACH 90D
Mfr # 1200910012
Zoro # G2079339
original price: $40.99
10% off
new price: $36.89
/eaSold in multiples of 7 for $258.23
Key Features
Keyway
None
Voltage - Maximum
60V AC / 75V DC
Gender
Male
Temperature Range - Operating
0°C to +80°C
Orientation
90° Angle
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
1200910012
Zoro #
G2079339
UPC #
-
Country of Origin
Poland
Dimensions
Cable Diameter
3.50-5.00mm (.138-.197")
Wire Size (AWG)
20-26
Details
Keyway
None
Voltage - Maximum
60V AC / 75V DC
Gender
Male
Temperature Range - Operating
0°C to +80°C
Orientation
90° Angle
Coupling Type
External Thread
Material - Coupling Nut
Nickel-plated Brass
Material - Plating Mating
Gold
Material - Connector Body
Polyamide
Poles
4
Current - Maximum per Contact
4.0A
IP Rating
IP67
Material - Contact
Copper Alloy
Series
120091
Product Name
Nano-Change (M8)
Diagnostics / LEDs
No
Type
Field Attachable Connector
Description
