  11. Neo 10.16Mm Hi-Pwr 60A S91 Sty05 Ckt06

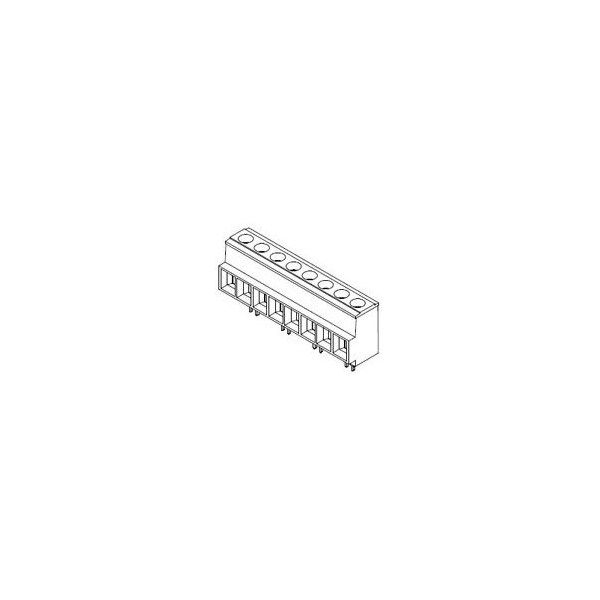

Molex Neo 10.16Mm Hi-Pwr 60A S91 Sty05 Ckt06 399100106 - main

Neo 10.16Mm Hi-Pwr 60A S91 Sty05 Ckt06

  • Mfr # 399100106

  • Zoro # G605918233

product price: $16.69
/ea
Sold in multiples of 4 for $66.76

Key Features

Series
39910
Type
Euro Block
Number of Rows
1
Orientation
Vertical
Current - Maximum per Contact
60.0A
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
399100106
Zoro #
G605918233
UPC #
-
Country of Origin
Mexico

Dimensions

Wire Size AWG
10, 12, 14, 16, 18, 6, 8
PC Tail Length
4.10mm
Wire Size mm²
0.75-10.00

Details

Series
39910
Type
Euro Block
Number of Rows
1
Orientation
Vertical
Current - Maximum per Contact
60.0A
Polarized to Mating Part
Yes
Pitch - Termination Interface
10.16mm
Stackable
No
PCB Retention
None
Lock to Mating Part
None
Plating min - Mating
3.810µm
Temperature Range - Operating
130°C
Surface Mount Compatible (SMC)
No
Pitch - Mating Interface
10.16mm
Shrouded
Fully
Panel Mount
No
Material - Plating Termination
Tin
Plating min - Termination
3.810µm
Voltage - Maximum
600V
Material - Metal
Brass, Copper
UL
E48521
Color - Resin
Black
Termination Interface: Style
Through Hole
Material - Plating Mating
Tin
Entry Angle
Horizontal
Circuits (Loaded)
6
Flammability
94V-0
Material - Resin
Polyester
Component Type
One Piece
Product Name
Eurostyle Fixed Mount
