Shop MOLEX

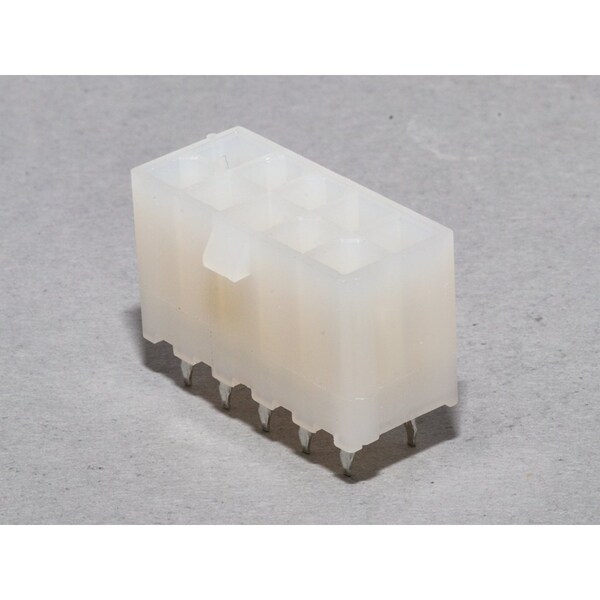

New Mini Fit Header Assy 10Ckt

  • Mfr # 39-29-0103
  • Zoro # G4037421
product price:
$
7.35
/ea
Sold in multiples of 1000 for $7,350.00

Key Features

Shrouded
Fully
Material - Plating Termination
Matte Tin
Duration at Max. Process Temperature (seconds)
5
Polarized to PCB
Yes
Material - Metal
Brass
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
39-29-0103
Zoro #
G4037421
UPC #
-
Country of Origin
Mexico
Shrouded
Fully
Material - Plating Termination
Matte Tin
Duration at Max. Process Temperature (seconds)
5
Polarized to PCB
Yes
Material - Metal
Brass
Orientation
Vertical
Process Temperature max. C
260
Circuits (maximum)
10
Pitch - Termination Interface
4.20mm
Pitch - Mating Interface
4.20mm
Temperature Range - Operating
-40° to +105°C
Flammability
94V-2
Termination Interface: Style
Through Hole
Plating min - Mating
0.762µm
UL
E29179
Max. Cycles at Max. Process Temperature
1
Number of Rows
2
Circuits (Loaded)
10
CSA
LR19980
Durability (mating cycles max)
30
Current - Maximum per Contact
9.0A
Polarized to Mating Part
Yes
Plating min - Termination
2.540µm
Voltage - Maximum
600V
Lock to Mating Part
Yes
Material - Resin
Nylon
Color - Resin
Natural
PCB Locator
Yes
Material - Plating Mating
Gold
