  11. New Mini Fit Header Assy 16Ckt
This item is Discontinued.

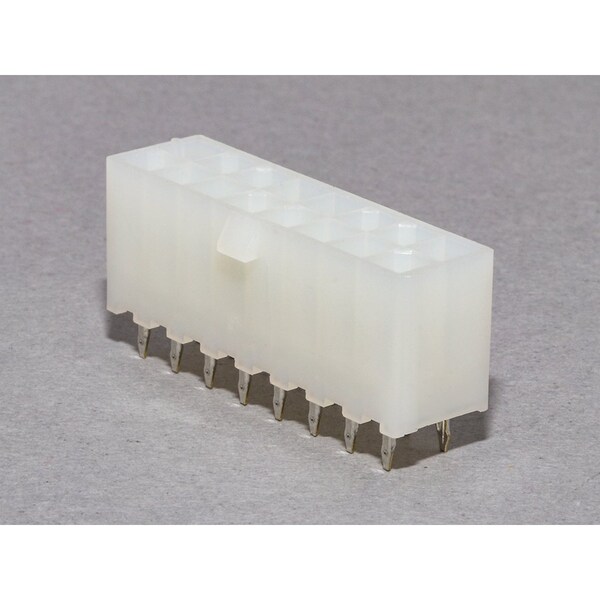

Molex New Mini Fit Header Assy 16Ckt 39-28-1163

New Mini Fit Header Assy 16Ckt (Discontinued)

  • Mfr # 39-28-1163
  • Zoro # G4038849
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
39-28-1163
Zoro #
G4038849
UPC #
-
Country of Origin
Mexico

Dimensions

PCB Thickness - Recommended
1.60mm
PC Tail Length
3.50mm

Details

Polarized to Mating Part
Yes
Current - Maximum per Contact
9.0A
Termination Interface: Style
Through Hole
Duration at Max. Process Temperature (seconds)
5
Shrouded
Fully
Pitch - Termination Interface
4.20mm
Material - Plating Termination
Tin
Lock to Mating Part
Yes
Material - Plating Mating
Tin
Voltage - Maximum
600V
CSA
LR19980
Color - Resin
Natural
Flammability
94V-2
Polarized to PCB
Yes
Durability (mating cycles max)
30
Plating min - Mating
0.889µm
Process Temperature max. C
240
Max. Cycles at Max. Process Temperature
1
Number of Rows
2
UL
E29179
Material - Metal
Brass
Plating min - Termination
0.889µm
Material - Resin
Nylon
Temperature Range - Operating
-40° to +105°C
Circuits (maximum)
16
Pitch - Mating Interface
4.20mm
Circuits (Loaded)
16
PCB Locator
Yes
Orientation
Vertical
