This item is Discontinued.

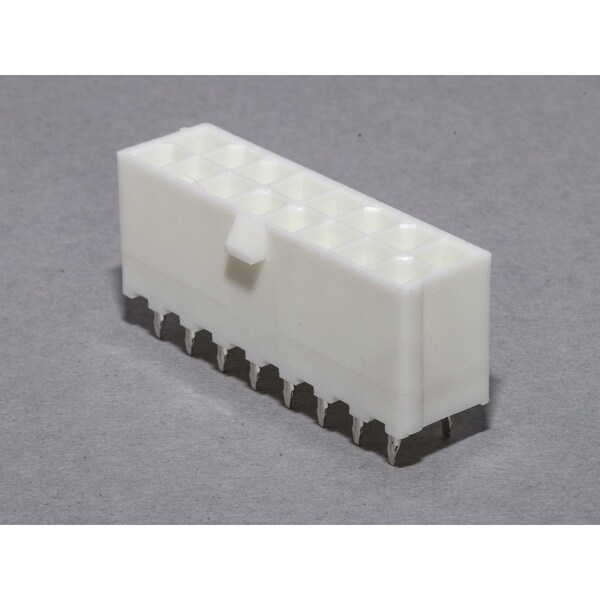

Molex New Mini Fit Header Assy 16Ckt 39-28-8160

New Mini Fit Header Assy 16Ckt (Discontinued)

  • Mfr # 39-28-8160
  • Zoro # G4030388
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
39-28-8160
Zoro #
G4030388
UPC #
-
Country of Origin
Mexico

Dimensions

PC Tail Length
3.50mm
PCB Thickness - Recommended
1.60mm

Details

Termination Interface: Style
Through Hole
Color - Resin
Natural
Process Temperature max. C
240
Max. Cycles at Max. Process Temperature
1
Voltage - Maximum
600V
Material - Metal
Brass
Material - Plating Termination
Tin
UL
E29179
Shrouded
Fully
Circuits (maximum)
16
CSA
LR19980
Pitch - Termination Interface
4.20mm
Polarized to Mating Part
Yes
Duration at Max. Process Temperature (seconds)
5
Lock to Mating Part
Yes
Number of Rows
2
Circuits (Loaded)
16
Durability (mating cycles max)
30
Current - Maximum per Contact
9.0A
Material - Plating Mating
Tin
Orientation
Vertical
Flammability
94V-0
Polarized to PCB
Yes
Pitch - Mating Interface
4.20mm
Plating min - Mating
0.889µm
Temperature Range - Operating
-40° to +105°C
PCB Locator
Yes
Material - Resin
Nylon
Plating min - Termination
0.889µm
