Shop MOLEX

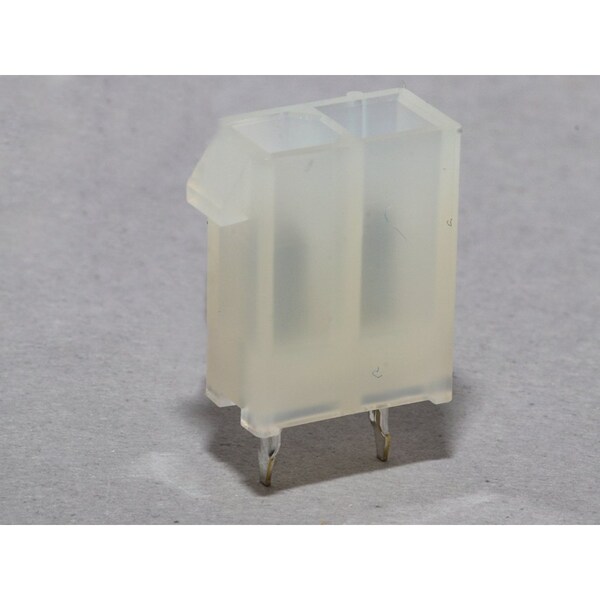

New Mini Fit Header Assy 2Ckt

  • Mfr # 39-28-1023

  • Zoro # G4040212

product price:
$
0.53
/ea
Sold in multiples of 250 for $132.50

Key Features

PCB Locator
Yes
Material - Plating Termination
Tin
Circuits (Loaded)
2
Number of Rows
2
Temperature Range - Operating
-40° to +105°C
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
39-28-1023
Zoro #
G4040212
UPC #
-
Country of Origin
Mexico

Dimensions

PCB Thickness - Recommended
1.60mm
PC Tail Length
3.50mm

Details

PCB Locator
Yes
Material - Plating Termination
Tin
Circuits (Loaded)
2
Number of Rows
2
Temperature Range - Operating
-40° to +105°C
UL
E29179
Plating min - Mating
0.889µm
Voltage - Maximum
600V
Durability (mating cycles max)
30
Polarized to PCB
Yes
Material - Plating Mating
Tin
Orientation
Vertical
Material - Metal
Brass
Polarized to Mating Part
Yes
Duration at Max. Process Temperature (seconds)
5
Lock to Mating Part
Yes
Plating min - Termination
0.889µm
CSA
LR19980
Circuits (maximum)
2
Process Temperature max. C
240
Material - Resin
Nylon
Current - Maximum per Contact
9.0A
Flammability
94V-2
Color - Resin
Natural
Shrouded
Fully
Max. Cycles at Max. Process Temperature
1
Termination Interface: Style
Through Hole
Pitch - Termination Interface
4.20mm
Pitch - Mating Interface
4.20mm
