Shop MOLEX

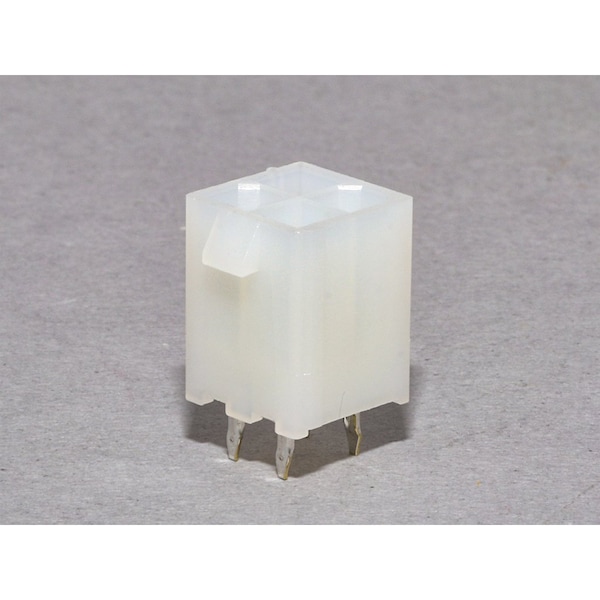

New Mini Fit Header Assy 4Ckt

  • Mfr # 39-28-1043

  • Zoro # G4034061

product price:
$
0.74
/ea
Sold in multiples of 157 for $116.18

Key Features

Termination Interface: Style
Through Hole
UL
E29179
Orientation
Vertical
Temperature Range - Operating
-40° to +105°C
Material - Metal
Brass
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
39-28-1043
Zoro #
G4034061
UPC #
-
Country of Origin
Mexico

Dimensions

PC Tail Length
3.50mm
PCB Thickness - Recommended
1.60mm

Details

Termination Interface: Style
Through Hole
UL
E29179
Orientation
Vertical
Temperature Range - Operating
-40° to +105°C
Material - Metal
Brass
Process Temperature max. C
240
Polarized to PCB
Yes
Pitch - Termination Interface
4.20mm
Max. Cycles at Max. Process Temperature
1
Circuits (Loaded)
4
Lock to Mating Part
Yes
Shrouded
Fully
Flammability
94V-2
Circuits (maximum)
4
Color - Resin
Natural
Polarized to Mating Part
Yes
Number of Rows
2
Material - Plating Termination
Tin
Material - Resin
Nylon
Durability (mating cycles max)
30
Plating min - Termination
0.889µm
Pitch - Mating Interface
4.20mm
PCB Locator
Yes
Material - Plating Mating
Tin
CSA
LR19980
Current - Maximum per Contact
9.0A
Duration at Max. Process Temperature (seconds)
5
Plating min - Mating
0.889µm
Voltage - Maximum
600V
