Shop MOLEX

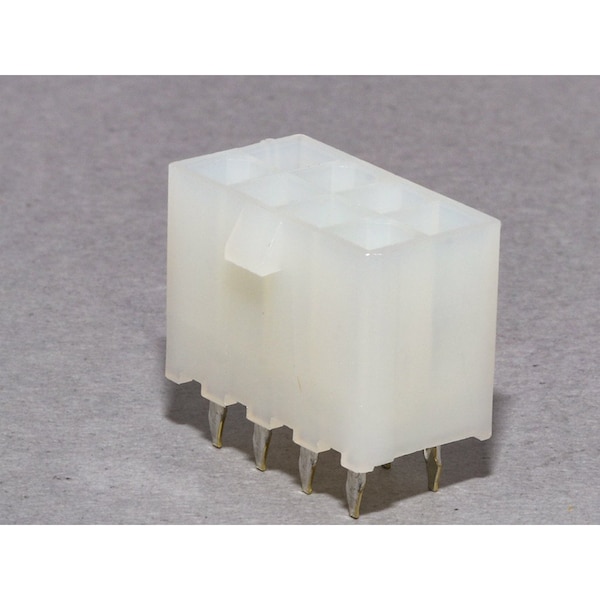

New Mini Fit Header Assy 8Ckt

  • Mfr # 39-28-1083

  • Zoro # G4036119

product price:  $1.15
/ea
Sold in multiples of 90 for $103.50

Key Features

PCB Locator
Yes
Durability (mating cycles max)
30
Orientation
Vertical
Circuits (Loaded)
8
Termination Interface: Style
Through Hole
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
39-28-1083
Zoro #
G4036119
UPC #
-
Country of Origin
Mexico

Dimensions

PCB Thickness - Recommended
1.60mm
PC Tail Length
3.50mm

Details

PCB Locator
Yes
Durability (mating cycles max)
30
Orientation
Vertical
Circuits (Loaded)
8
Termination Interface: Style
Through Hole
Color - Resin
Natural
Process Temperature max. C
240
Material - Plating Mating
Tin
Polarized to PCB
Yes
Shrouded
Fully
Temperature Range - Operating
-40° to +105°C
Pitch - Mating Interface
4.20mm
UL
E29179
Duration at Max. Process Temperature (seconds)
5
Flammability
94V-2
Plating min - Termination
0.889µm
Number of Rows
2
Plating min - Mating
0.889µm
Current - Maximum per Contact
9.0A
CSA
LR19980
Lock to Mating Part
Yes
Voltage - Maximum
600V
Circuits (maximum)
8
Polarized to Mating Part
Yes
Max. Cycles at Max. Process Temperature
1
Material - Metal
Brass
Material - Resin
Nylon
Material - Plating Termination
Tin
Pitch - Termination Interface
4.20mm
