  11. Pcb Term.110X.020 Loose Plt Spm
This item is Discontinued.

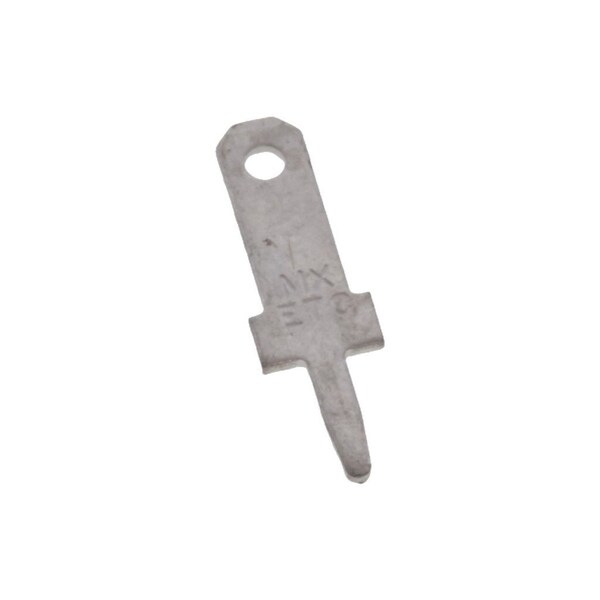

Molex Pcb Term.110X.020 Loose Plt Spm 197124001

Pcb Term.110X.020 Loose Plt Spm (Discontinued)

  • Mfr # 197124001
  • Zoro # G605913986
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
197124001
Zoro #
G605913986
UPC #
-
Country of Origin
United States

Dimensions

Contact Plating Thickness
3.81 µm
Tab Width
2.79mm
Tab Thickness
0.51mm

Details

Series
19712
Standards
UL E79133
Type
Quick Disconnect
Material
Brass
Terminal Finish
Tin Plated
Contact Finish
Tin Plated
Insulated
No
Connector Type
Male
Terminal Type
Through Hole
Material - Plating Mating
Tin
Material - Plating Termination
Tin
Orientation
PCB Straight Tab
UL
E79133
Plating min - Mating
3.810µm
Lock to Mating Part
None
Product Name
PCB Tab
Insulation
None
Glow-Wire Capable
No
Polarized to Mating Part
No
