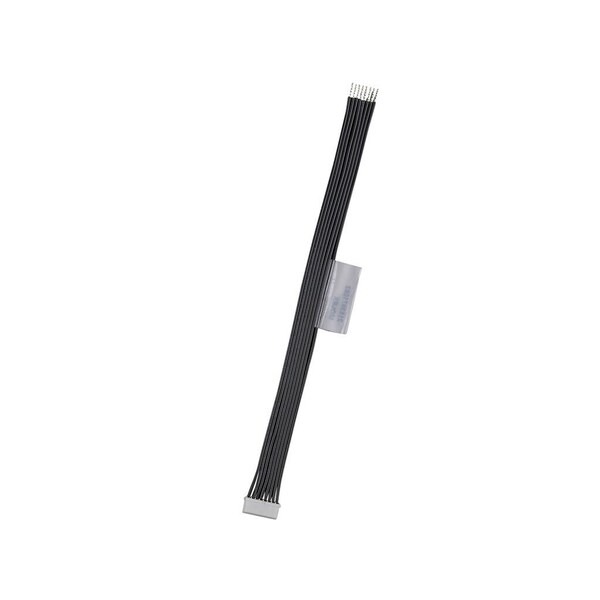

Pico-Spox 1.5 R-S 8Ckt 600Mm Disc Sn
Mfr # 2183971084
Zoro # G205925587
product price:Â
$
4.15
/ea
Sold in multiples of 25 for $103.75
Key Features
Cable Length
600.00mm
Series
218397
Application
Signal, Wire-to-Board, Wire-to-Wire
Type
Discrete Wire Assembly
Circuits (Loaded)
8
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- 2183971084
- Zoro #
- G205925587
- UPC #
- -
- Country of Origin
- India
Dimensions
- Cable Length
- 600.00mm
- Wire Size (AWG)
- 24
- Wire Insulation Diameter
- 0.95-1.20mm
Details
- Series
- 218397
- Application
- Signal, Wire-to-Board, Wire-to-Wire
- Type
- Discrete Wire Assembly
- Circuits (Loaded)
- 8
- Material - Metal
- Phosphor Bronze
- Product Name
- Pico-SPOX
- Assembly Configuration
- Single Ended Connector
- Plating min - Mating
- 2.540µm
- Material - Resin
- Nylon
- Voltage - Maximum
- 250V
- Gender
- Female-Pigtail
- Wire/Cable Type
- UL 10002
- Single Ended
- Yes
- Color - Resin
- Natural
- Number of Rows
- 1
- Material - Plating Mating
- Tin
- Termination Interface Style
- Crimp or Compression
- Lock to Mating Part
- Yes
- Pitch - Mating Interface
- 1.50mm
- Current - Maximum per Contact
- 2.5A
