  11. Pin & Socket Connectors 093 Shrd Pin Skt Hdrs 15Ckt

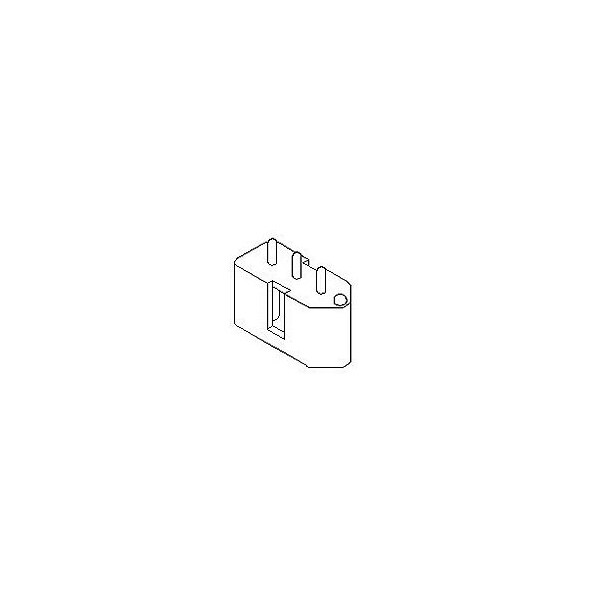

Molex Pin & Socket Connectors 093 Shrd Pin Skt Hdrs 15Ckt 10181150 - main

Pin & Socket Connectors 093 Shrd Pin Skt Hdrs 15Ckt

  • Mfr # 10181150

  • Zoro # G905785986

product price: $3.15
/ea
Sold in multiples of 23 for $72.45

Key Features

Color
Black
Insulation Material
Polyester
Max. Voltage
250V
Maximum Voltage
250 V
Application
Power, Wire-to-Board
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
10181150
Zoro #
G905785986
UPC #
-
Country of Origin
Mexico

Dimensions

Contact Plating Thickness
5.08 µm
PCB Thickness - Recommended
1.60mm
PC Tail Length
4.32mm

Details

Item
Push-In Wire Connector
Color
Black
Insulation Material
Polyester
Max. Voltage
250V
Maximum Voltage
250 V
Application
Power, Wire-to-Board
Current
5 A
Series
3099
Standards
CSA Certified; UL E29179
Maximum Operating Temperature
105 Degrees C
UL 94 Flammability Rating
V-2
Material
Polyester
Current Rating
5 A
Number of Rows
3
Terminal Type
Through Hole
Contact Finish
Tin Plated
Number of Contacts
15
Hole Center to Center
5.03 mm
Max. Temp.
105°C
Flammability Rating
UL 94V-2
Terminal Finish
Tin Plated
Material - Plating Termination
Tin
UL
E29179
Durability (mating cycles max)
25
Component Type
PCB Header
Circuits (Loaded)
15
Breakaway
No
Lock to Mating Part
Yes
Temperature Range - Operating
-40° to +105°C
Pitch - Mating Interface
5.03mm
Material - Metal
Brass, Phosphor Bronze
Glow-Wire Capable
No
Plating min - Mating
5.080µm
Shrouded
Fully
CSA
LR19980
Polarized to PCB
Yes
Material - Resin
Polyester
Polarized to Mating Part
Yes
Stackable
No
Current - Maximum per Contact
5.0A
Orientation
Vertical
PCB Locator
Yes
Flammability
94V-2
Material - Plating Mating
Tin
PCB Retention
None
Product Name
Standard .093"
