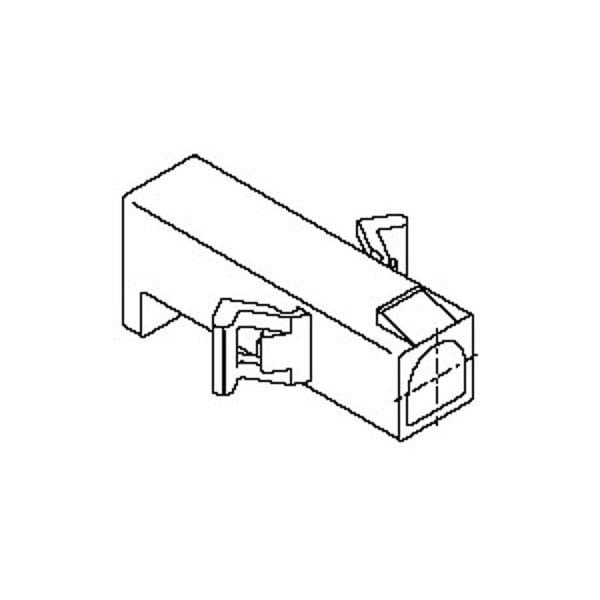

Pin & Socket Connectors 2.36Mm Diameter Standard .093 Pin And Socket Plug Housing With Positive

  • Mfr # 39036012

  • Zoro # G105916807


product price: $0.13
/ea
Sold in multiples of 650 for $84.50

Key Features

Color
Natural
Number of Rows
1
Series
3191
Application
Power, Wire-to-Board, Wire-to-Wire
Connector Type
Plug
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
39036012
Zoro #
G105916807
UPC #
800753756854
Country of Origin
Japan

Details

Color
Natural
Item
Pin and Socket Connector
Number of Rows
1
Series
3191
Application
Power, Wire-to-Board, Wire-to-Wire
Connector Type
Plug
Material
Nylon
Sub-Category
Crimp Housings
Max. Temp.
105°C
Standards
CSA Certified; UL E29179
Number of Contacts
1
Flammability Rating
UL 94V-2
Current Rating
12 A
Polarized to Mating Part
Yes
Current - Maximum per Contact
12.0A
Glow-Wire Capable
No
Circuits (maximum)
1
Temperature Range - Operating
-40° to +105°C
Product Name
Standard .093"
Material - Resin
Nylon
Lock to Mating Part
Yes
CSA
LR19980
Flammability
94V-2
UL
E29179
Keying to Mating Part
None
Stackable
No
Breakaway
No

Description

Pin & Socket Connectors 2.36Mm Diameter Standard .093 Pin And Socket Plug Housing With Positive Latch, Ul 94V-2, Without Panel Mount, 1 Circuit
