This item is Discontinued.

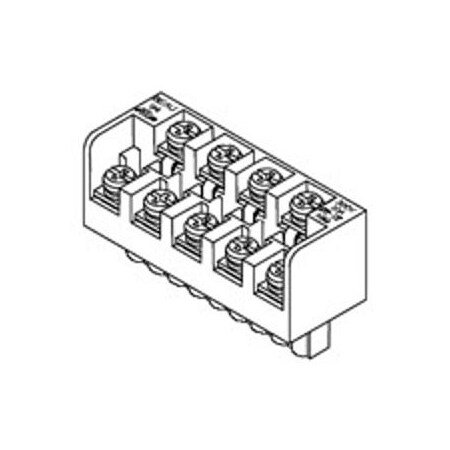

Molex Pluggable Terminal Blocks Plug Rwe 5.08Mm Emat Rwe 5.08Mm Emate-E 1 399400413

Pluggable Terminal Blocks Plug Rwe 5.08Mm Emat Rwe 5.08Mm Emate-E 1 (Discontinued)

  • Mfr # 399400413
  • Zoro # G605797883
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
399400413
Zoro #
G605797883
UPC #
-
Country of Origin
Mexico

Dimensions

Wire Size AWG
12, 14, 16, 18, 20, 22
Wire Size mm²
0.50-2.50

Details

Type
Euro Block
Temperature Range - Operating
130°C
Orientation
Vertical
Current - Maximum per Contact
15.0A
Color - Resin
Black
Lock to Mating Part
Yes
Number of Rows
2
Entry Angle
Horizontal
Voltage - Maximum
300V
Material - Resin
Nylon
Polarized to Mating Part
Yes
Pitch - Termination Interface
5.08mm
Pitch - Mating Interface
5.08mm
Flammability
94V-0
Shrouded
Tri-Barrier
Panel Mount
No
Termination Interface: Style
Screw or Lug
Stackable
No
Circuits (Loaded)
13
UL
E48521
Product Name
EuroMate Pluggable
Series
39940
Component Type
Plug
