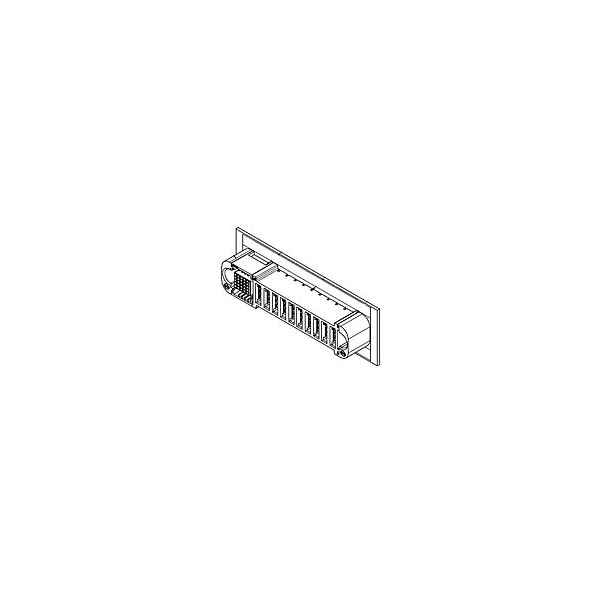

Molex Power To The Board 465621394 - main

Power To The Board

  • Mfr # 465621394

  • Zoro # G905932472

product price: $15.99
/ea
Sold in multiples of 5 for $79.95

Key Features

Max. Voltage
600V AC; 250V DC
Max. Temp.
260°C
Application
Board-to-Board, Power, Signal
Series
46562
Standards
CSA Certified; UL E29179
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
465621394
Zoro #
G905932472
UPC #
-
Country of Origin
Indonesia

Dimensions

PCB Thickness - Recommended
1.58mm
Mated Height
18.00mm
PC Tail Length
2.50mm, 2.82mm

Details

Max. Voltage
600V AC; 250V DC
Max. Temp.
260°C
Application
Board-to-Board, Power, Signal
Series
46562
Standards
CSA Certified; UL E29179
Material
High Temperature Thermoplastic
Color
Black
Flammability Rating
UL 94V-0
Terminal Finish
Matte Tin Plated
Number of Rows
1
Hole Center to Center
2 mm, 5.5 mm
Current Rating
2.5 A; 60 A
Number of Contacts
35
Terminal Type
Through Hole - Compliant Pin
Contact Finish
Gold Plated
Guide to Mating Part
Side, Yes
Glow-Wire Capable
No
Pitch - Mating Interface
2.00mm, 5.50mm
Durability (mating cycles max)
200
PCB Retention
None
Max-Cycle
3
Polarized to PCB
Yes
Component Type
PCB Receptacle
Stackable
No
Orientation
Vertical
Polarized to Mating Part
Yes
Product Name
EXTreme Ten60Power
Material - Plating Termination
Matte Tin
Temperature Range - Operating
-40° to +105°C
Material - Plating Mating
Gold
Max-Duration
40
Voltage - Maximum
600V AC / 250V DC
Grounding to PCB
No
Material - Resin
High Temperature Thermoplastic
UL
E29179
(p)ower-(s)ignal Configuration
10p - 25s
Material - Metal
Copper Alloy
CSA
LR19980
Flammability
94V-0
Current - Maximum per Contact
2.5A, 60.0A
Max-Temp
260
Circuits (Loaded)
35
