  11. Power To The Board Super-Sabre Vert Hdr Assy 8Ckt Fgrprf

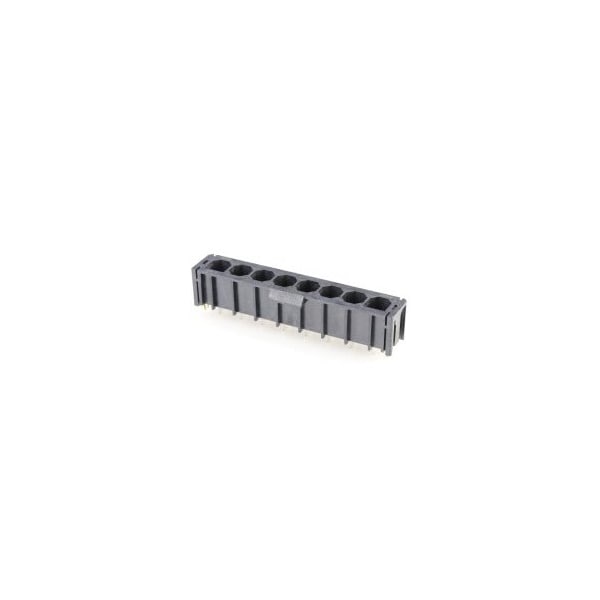

Molex Power To The Board Super-Sabre Vert Hdr Assy 8Ckt Fgrprf 1720420802 - main

Power To The Board Super-Sabre Vert Hdr Assy 8Ckt Fgrprf

  • Mfr # 1720420802

  • Zoro # G505791080

product price: $5.65
/ea
Sold in multiples of 15 for $84.75

Key Features

Color
Black
Max. Voltage
600V AC
Maximum Voltage
600 V AC
Application
Power, Signal, Wire-to-Board
Series
172042
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
1720420802
Zoro #
G505791080
UPC #
-
Country of Origin
Mexico

Dimensions

Contact Plating Thickness
0.025 µm
PC Tail Length
3.81mm

Details

Item
PCB Header
Color
Black
Max. Voltage
600V AC
Maximum Voltage
600 V AC
Application
Power, Signal, Wire-to-Board
Series
172042
Standards
CSA Certified; UL E29179
Maximum Operating Temperature
260 Degrees C
UL 94 Flammability Rating
V-0
Material
High Temperature Thermoplastic
Hole Center to Center
7.5 mm
Number of Contacts
8
Features
Glow-Wire Capable; Surface Mount Compatible
Number of Rows
1
Contact Finish
Silver Plated
Terminal Type
Through Hole
Max. Temp.
260°C
Flammability Rating
UL 94V-0
Terminal Finish
Matte Tin Plated; Nickel Plated
Orientation
Vertical
Current - Maximum per Contact
30.0A per blade
Product Name
Super Sabre
Component Type
PCB Header
Max-Cycle
3
UL
E29179
Voltage - Maximum
600V AC (RMS)
Material - Resin
High Temperature Thermoplastic
First Mate / Last Break
No
Material - Plating Mating
Silver
Material - Metal
Copper
Max-Duration
30
Circuits (Loaded)
8
Polarized to Mating Part
Yes
Durability (mating cycles max)
25
Glow-Wire Capable
Yes
Pitch - Mating Interface
7.50mm
Temperature Range - Operating
-40° to +125°C
Material - Plating Termination
Matte Tin, Nickel
Plating min - Mating
0.025µm
Breakaway
No
CSA
LR19980
PCB Retention
Yes
Flammability
94V-0
Lock to Mating Part
Yes
Max-Temp
260
Maximum Conductors
8
