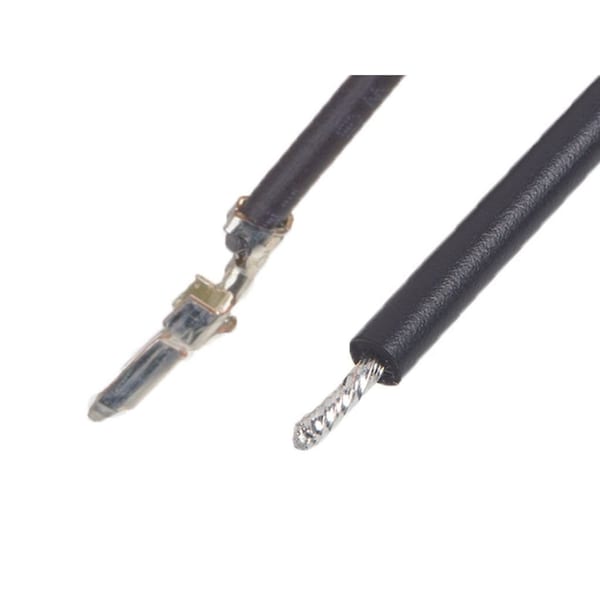

Pre-Crimped Lead Picoblade Male-To-Pigtail, Tin Plated, 225.00Mm Length
Mfr # 2149231113
Zoro # G105925977
original price:Â $0.96 , new price: $0.91 , 5 percent off
new price:Â $0.91
/ea
Sold in multiples of 104 for $94.64
Key Features
Cable Length
225.00mm
Series
214923
Voltage - Maximum
125V AC (RMS)/DC
Material - Plating Termination
Tin
Wire Insulation Diameter
0.50-1.00mm
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- 2149231113
- Zoro #
- G105925977
- UPC #
- -
- Country of Origin
- India
Dimensions
- Cable Length
- 225.00mm
- Wire Insulation Diameter
- 0.50-1.00mm
- Wire Size AWG
- 28
Details
- Series
- 214923
- Voltage - Maximum
- 125V AC (RMS)/DC
- Material - Plating Termination
- Tin
- Wire/Cable Type
- UL 1061
- Material - Plating Mating
- Tin
- Single Ended
- Yes
- Circuits (Loaded)
- 1
- Gender
- Male-Pigtail
- Current - Maximum per Contact
- 1.0A
- Color - Resin
- Black
- Pitch - Mating Interface
- 1.25mm
- Plating min - Mating
- 0.889µm
- Material - Metal
- Phosphor Bronze
- Termination Interface: Style
- Crimp or Compression
- Product Name
- PicoBlade
- Assembly Configuration
- Pre-crimped Lead Only
- Connector to Connector
- PicoBlade Terminal-to-Pigtail
