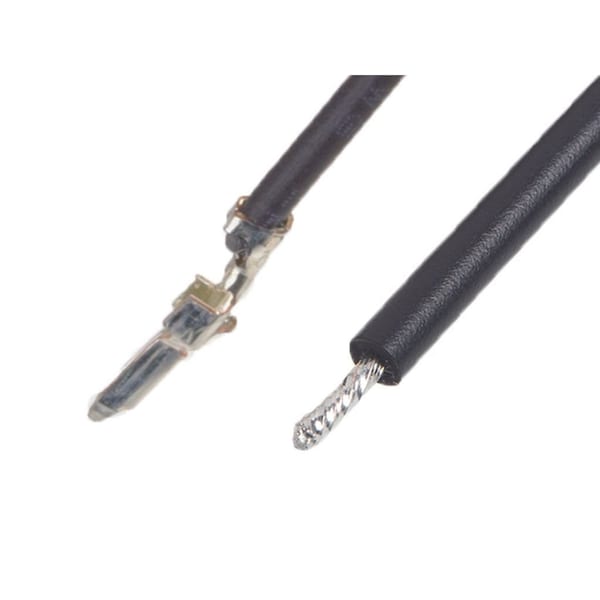

Pre-Crimped Lead Picoblade Male-To-Pigtail, Tin Plated, 225.00Mm Length
Mfr # 2149231213
Zoro # G305925623
product price:Â
$
0.99
/ea
Sold in multiples of 150 for $148.50
Key Features
Cable Length
225.00mm
Series
214923
Material - Plating Mating
Tin
Termination Interface: Style
Crimp or Compression
Material - Plating Termination
Tin
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- 2149231213
- Zoro #
- G305925623
- UPC #
- -
- Country of Origin
- India
Dimensions
- Cable Length
- 225.00mm
- Wire Size AWG
- 26
- Wire Insulation Diameter
- 0.50-1.00mm
Details
- Series
- 214923
- Material - Plating Mating
- Tin
- Termination Interface: Style
- Crimp or Compression
- Material - Plating Termination
- Tin
- Wire/Cable Type
- UL 1061
- Circuits (Loaded)
- 1
- Color - Resin
- Black
- Material - Metal
- Phosphor Bronze
- Voltage - Maximum
- 125V AC (RMS)/DC
- Single Ended
- Yes
- Pitch - Mating Interface
- 1.25mm
- Gender
- Male-Pigtail
- Current - Maximum per Contact
- 1.0A
- Connector to Connector
- PicoBlade Terminal-to-Pigtail
- Product Name
- PicoBlade
- Assembly Configuration
- Pre-crimped Lead Only
