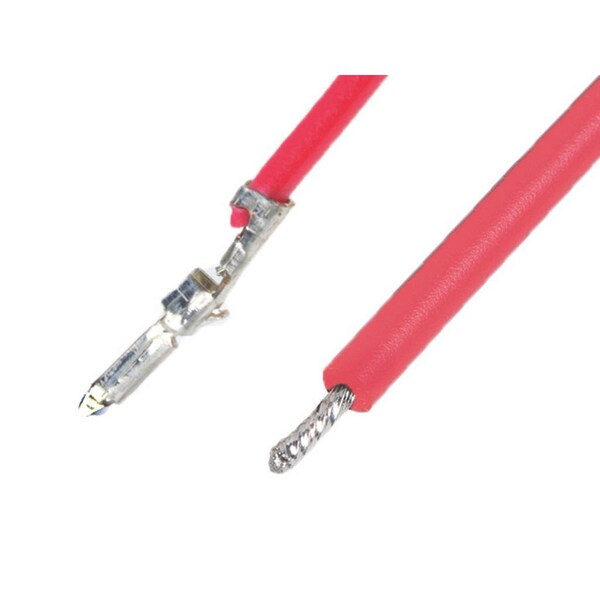

Pre-Crimped Lead Picoblade Male-To-Pigtail, Tin Plated, 450.00Mm Length
Mfr # 2149231125
Zoro # G005925619
product price:Â
$
0.95
/ea
Sold in multiples of 104 for $98.80
Key Features
Cable Length
450.00mm
Series
214923
Material - Metal
Phosphor Bronze
Termination Interface: Style
Crimp or Compression
Wire Size AWG
28
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- 2149231125
- Zoro #
- G005925619
- UPC #
- -
- Country of Origin
- India
Dimensions
- Cable Length
- 450.00mm
- Wire Size AWG
- 28
- Wire Insulation Diameter
- 0.50-1.00mm
Details
- Series
- 214923
- Material - Metal
- Phosphor Bronze
- Termination Interface: Style
- Crimp or Compression
- Voltage - Maximum
- 125V AC (RMS)/DC
- Current - Maximum per Contact
- 1.0A
- Single Ended
- Yes
- Wire/Cable Type
- UL 1061
- Circuits (Loaded)
- 1
- Color - Resin
- Red
- Material - Plating Mating
- Tin
- Plating min - Mating
- 0.889µm
- Pitch - Mating Interface
- 1.25mm
- Material - Plating Termination
- Tin
- Gender
- Male-Pigtail
- Product Name
- PicoBlade
- Connector to Connector
- PicoBlade Terminal-to-Pigtail
- Assembly Configuration
- Pre-crimped Lead Only
