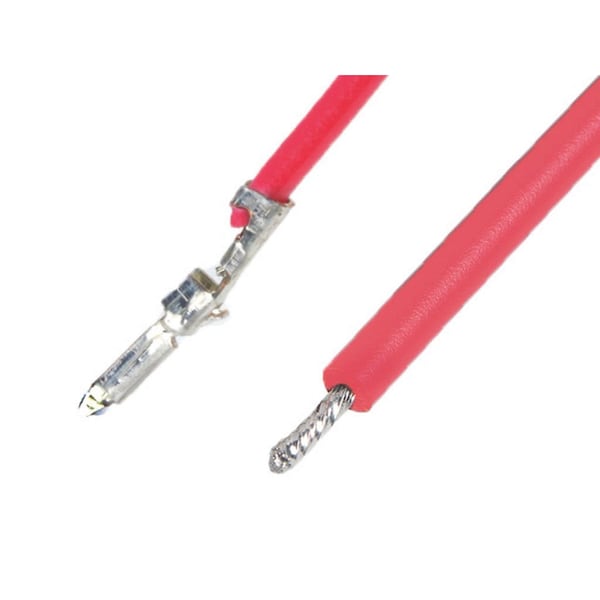

Pre-Crimped Lead Picoblade Male-To-Pigtail, Tin Plated, 75.00Mm Length
Mfr # 2149231121
Zoro # G205925631
original price:Â $0.96 , new price: $0.91 , 5 percent off
new price:Â $0.91
/ea
Sold in multiples of 104 for $94.64
Key Features
Cable Length
75.00mm
Series
214923
Material - Plating Mating
Tin
Wire Size AWG
28
Wire Insulation Diameter
0.50-1.00mm
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption
Specifications
Product Information
- MFR #
- 2149231121
- Zoro #
- G205925631
- UPC #
- -
- Country of Origin
- India
Dimensions
- Cable Length
- 75.00mm
- Wire Size AWG
- 28
- Wire Insulation Diameter
- 0.50-1.00mm
Details
- Series
- 214923
- Material - Plating Mating
- Tin
- Material - Plating Termination
- Tin
- Material - Metal
- Phosphor Bronze
- Wire/Cable Type
- UL 1061
- Termination Interface: Style
- Crimp or Compression
- Voltage - Maximum
- 125V AC (RMS)/DC
- Single Ended
- Yes
- Color - Resin
- Red
- Pitch - Mating Interface
- 1.25mm
- Gender
- Male-Pigtail
- Circuits (Loaded)
- 1
- Plating min - Mating
- 0.889µm
- Current - Maximum per Contact
- 1.0A
- Connector to Connector
- PicoBlade Terminal-to-Pigtail
- Product Name
- PicoBlade
- Assembly Configuration
- Pre-crimped Lead Only
