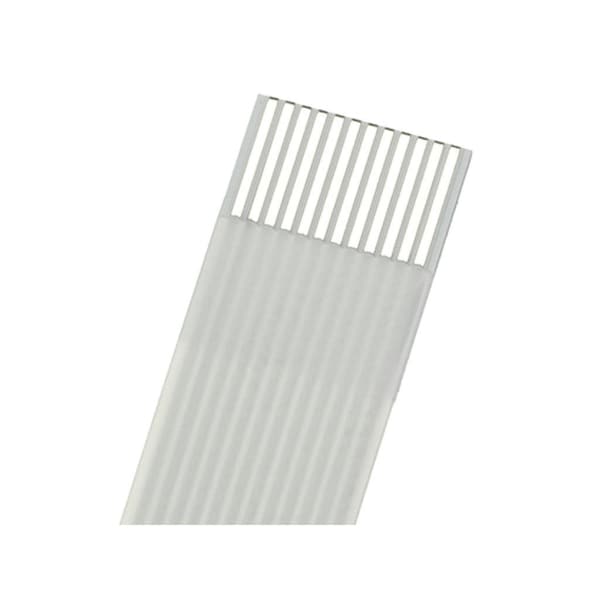

Premo-Flex 0.50 Jmpr Lgt 102 Typea 28Ckt
Mfr # 152660299
Zoro # G205948944
product price:Â
$
3.29
/ea
Sold in multiples of 30 for $98.70
Key Features
Max. Voltage
60V AC
Maximum Voltage
60 V AC
Current
0.5 A
Series
15266
Minimum Operating Temperature
-40 Degrees C
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- 152660299
- Zoro #
- G205948944
- UPC #
- 884982436350
- Country of Origin
- Hungary
Dimensions
- Length
- 0.102 m
- Cable Length
- 102.00mm
Details
- Item
- Cable Jumpers
- Max. Voltage
- 60V AC
- Maximum Voltage
- 60 V AC
- Current
- 0.5 A
- Series
- 15266
- Minimum Operating Temperature
- -40 Degrees C
- Maximum Operating Temperature
- 105 Degrees C
- Current Rating
- 0.5 A
- Max. Temp.
- 105°C
- Sub-Category
- Cable
- Number of Contacts
- 28
- Hole Center to Center
- 0.5 mm
- Circuits (Loaded)
- 28
- Temperature Range - Operating
- -40° to +105°C
- Material - Plating Mating
- Tin
- Current - Maximum per Contact
- 0.5A
- Pitch - Mating Interface
- 0.50mm
- Wire/Cable Type
- Flat Flex Cable
- Contact Layout Type
- A (same side)
- Product Name
- Premo-Flex FFC Jumper
