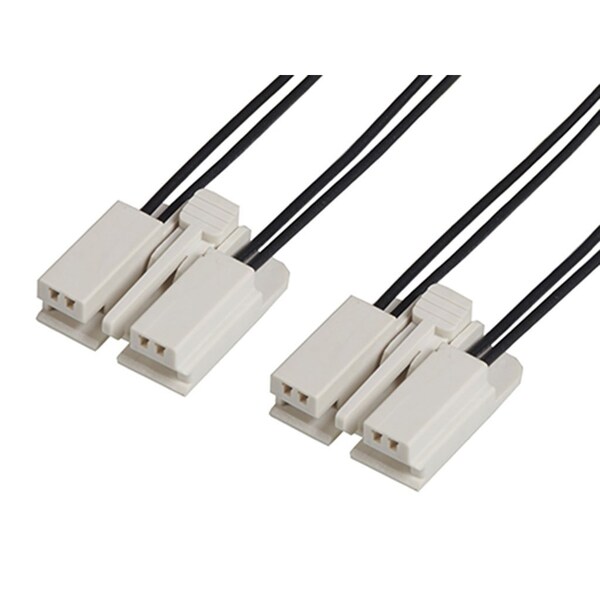

Rectangular Cable Assemblies Edge Lock R-R 4Ckt 300Mm Sn
Mfr # 2163301043
Zoro # G305925920
product price: $7.69
/eaSold in multiples of 15 for $115.35
Key Features
Type
Discrete Wire Assembly
Series
216330
Cable Length
300.00mm
Application
Signal, Wire-to-Board
Plating min - Mating
1.000µm
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
2163301043
Zoro #
G305925920
UPC #
-
Country of Origin
India
Dimensions
Cable Length
300.00mm
Wire Insulation Diameter
1.10-1.40mm
Wire Size AWG
22
Details
Type
Discrete Wire Assembly
Series
216330
Application
Signal, Wire-to-Board
Plating min - Mating
1.000µm
Pitch - Mating Interface
2.00mm
Wire/Cable Type
UL 10002
Material - Metal
Phosphor Bronze
Current - Maximum per Contact
3.0A
Termination Interface: Style
Crimp or Compression, Straddle Mount-Edge Card
Voltage - Maximum
125V
Material - Plating Mating
Tin
Circuits (Loaded)
4
Material - Plating Termination
Tin
Material - Resin
Nylon
Color - Resin
Black
Single Ended
No
Assembly Configuration
Dual Ended Connectors
Connector to Connector
Edgelock-to-Edgelock
Number of Rows
1
Product Name
EdgeLock
Overmolded
No
