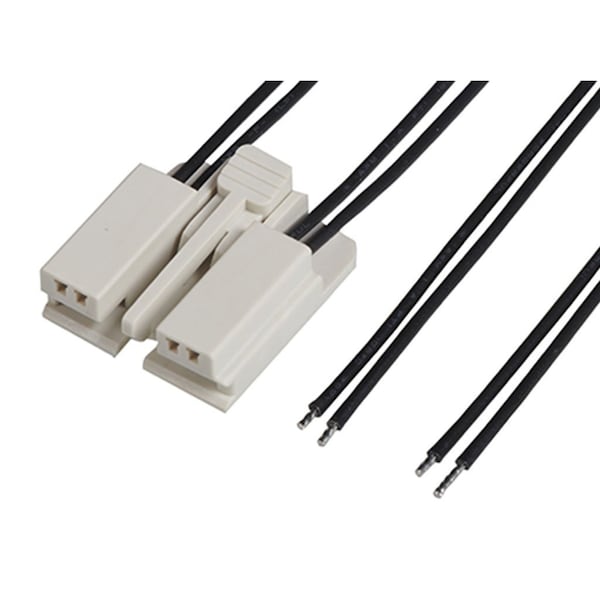

Rectangular Cable Assemblies Edge Lock R-S 4Ckt 150Mm Sn
Mfr # 2163311042
Zoro # G305926026
product price:Â
$
3.89
/ea
Sold in multiples of 22 for $85.58
Key Features
Series
216331
Application
Signal, Wire-to-Board
Type
Discrete Wire Assembly
Cable Length
150.00mm
Material - Metal
Phosphor Bronze
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- 2163311042
- Zoro #
- G305926026
- UPC #
- -
- Country of Origin
- India
Dimensions
- Cable Length
- 150.00mm
- Wire Size AWG
- 22
- Wire Insulation Diameter
- 1.10-1.40mm
Details
- Series
- 216331
- Application
- Signal, Wire-to-Board
- Type
- Discrete Wire Assembly
- Material - Metal
- Phosphor Bronze
- Pitch - Mating Interface
- 2.00mm
- Wire/Cable Type
- UL 10002
- Color - Resin
- Black
- Voltage - Maximum
- 125V
- Material - Plating Mating
- Tin
- Current - Maximum per Contact
- 3.0A
- Termination Interface: Style
- Crimp or Compression, Straddle Mount-Edge Card
- Material - Plating Termination
- Tin
- Material - Resin
- Nylon
- Single Ended
- Yes
- Plating min - Mating
- 1.000µm
- Circuits (Loaded)
- 4
- Assembly Configuration
- Single Ended Connector
- Connector to Connector
- Edgelock-to-Pigtail
- Overmolded
- No
- Product Name
- EdgeLock
- Number of Rows
- 1
