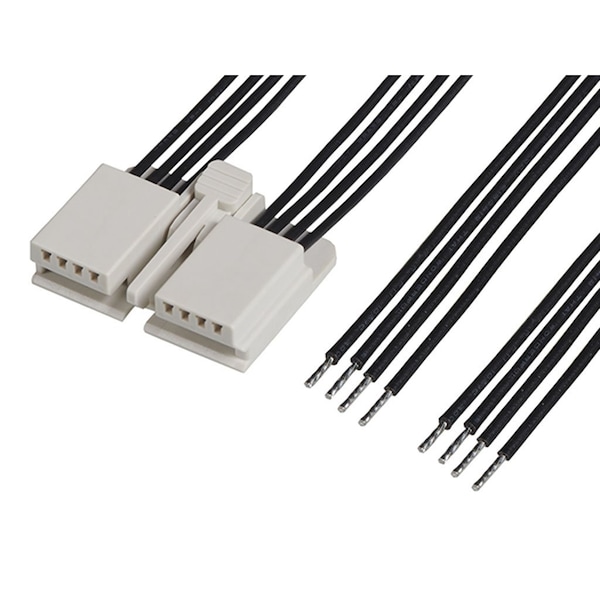

Rectangular Cable Assemblies Edge Lock R-S 8Ckt 150Mm Sn
- Mfr # 2163311082
- Zoro # G205925617
product price:Â
$
6.19
/ea
Sold in multiples of 15 for
$92.85
Key Features
Application
Signal, Wire-to-Board
Cable Length
150.00mm
Series
216331
Type
Discrete Wire Assembly
Current - Maximum per Contact
3.0A
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- 2163311082
- Zoro #
- G205925617
- UPC #
- -
- Country of Origin
- India
Dimensions
- Cable Length
- 150.00mm
- Wire Insulation Diameter
- 1.10-1.40mm
- Wire Size AWG
- 22
Details
- Application
- Signal, Wire-to-Board
- Series
- 216331
- Type
- Discrete Wire Assembly
- Current - Maximum per Contact
- 3.0A
- Wire/Cable Type
- UL 10002
- Pitch - Mating Interface
- 2.00mm
- Plating min - Mating
- 1.000µm
- Color - Resin
- Black
- Voltage - Maximum
- 125V
- Circuits (Loaded)
- 8
- Material - Resin
- Nylon
- Material - Metal
- Phosphor Bronze
- Material - Plating Mating
- Tin
- Termination Interface: Style
- Crimp or Compression, Straddle Mount-Edge Card
- Single Ended
- Yes
- Material - Plating Termination
- Tin
- Number of Rows
- 1
- Connector to Connector
- Edgelock-to-Pigtail
- Assembly Configuration
- Single Ended Connector
- Product Name
- EdgeLock
- Overmolded
- No
