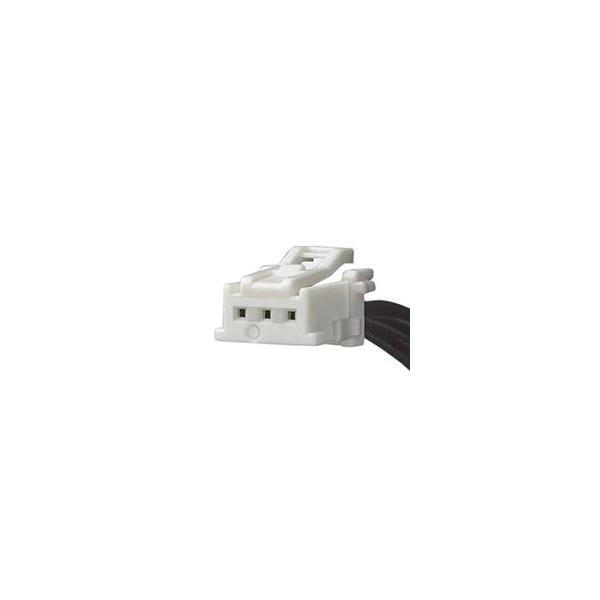

Rectangular Cable Assemblies Microclasp 3Ckt Cbl Assy Sr 100Mm White
- Mfr # 151360301
- Zoro # G505925829
product price:Â
$
2.99
/ea
Sold in multiples of 30 for
$89.70
Key Features
Series
15136
Type
Discrete Wire Assembly
Application
Signal, Wire-to-Board
Cable Length
100.00mm
Gender
Female-Female
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Details
- MFR #
- 151360301
- Zoro #
- G505925829
- UPC #
- -
- Country of Origin
- China
- Series
- 15136
- Type
- Discrete Wire Assembly
- Application
- Signal, Wire-to-Board
- Gender
- Female-Female
- Plating min - Termination
- 0.914µm
- Voltage - Maximum
- 250V AC (RMS)/DC
- Number of Rows
- 1
- Circuits (Loaded)
- 3
- Material - Metal
- Phosphor Bronze
- Material - Resin
- Nylon
- Material - Plating Termination
- Tin
- Wire/Cable Type
- UL 1061
- Pitch - Mating Interface
- 2.00mm
- Plating min - Mating
- 0.889µm
- Current - Maximum per Contact
- 3.0A
- Termination Interface: Style
- Crimp or Compression
- Color - Resin
- White
- Lock to Mating Part
- Yes
- Material - Plating Mating
- Tin
- Assembly Configuration
- Dual Ended Connectors
- Overmolded
- No
- Product Name
- MicroClasp
- Single Ended
- No
- Connector to Connector
- MicroClasp-to-MicroClasp
Dimensions
- Cable Length
- 100.00mm
- Wire Size AWG
- 22
- Wire Insulation Diameter
- 1.28mm
