Shop MOLEX

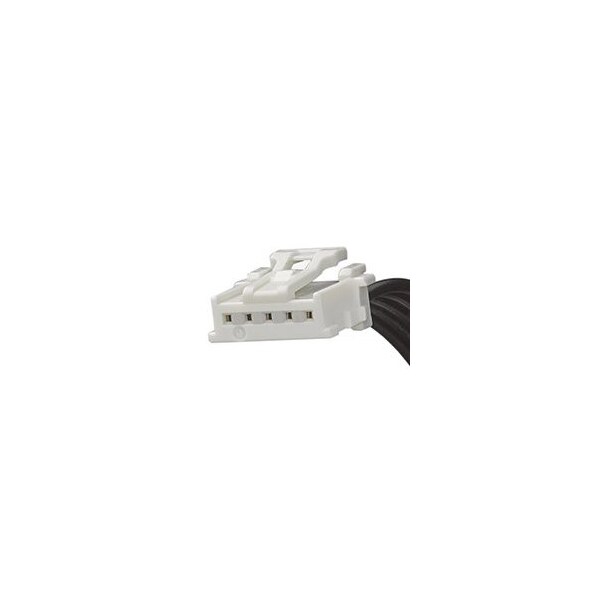

Rectangular Cable Assemblies Microclasp 5Ckt Cbl Assy Sr 150Mm White

  • Mfr # 151360502
  • Zoro # G305925968
product price:
$
4.29
/ea
Sold in multiples of 20 for $85.80

Key Features

Cable Length
150.00mm
Type
Discrete Wire Assembly
Series
15136
Application
Signal, Wire-to-Board
Wire Insulation Diameter
1.28mm
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
151360502
Zoro #
G305925968
UPC #
-
Country of Origin
China

Dimensions

Cable Length
150.00mm
Wire Insulation Diameter
1.28mm
Wire Size AWG
22

Details

Type
Discrete Wire Assembly
Series
15136
Application
Signal, Wire-to-Board
Circuits (Loaded)
5
Gender
Female-Female
Plating min - Termination
0.914µm
Termination Interface: Style
Crimp or Compression
Material - Plating Termination
Tin
Material - Plating Mating
Tin
Plating min - Mating
0.889µm
Material - Metal
Phosphor Bronze
Voltage - Maximum
250V AC (RMS)/DC
Current - Maximum per Contact
3.0A
Color - Resin
White
Number of Rows
1
Pitch - Mating Interface
2.00mm
Lock to Mating Part
Yes
Wire/Cable Type
UL 1061
Material - Resin
Nylon
Assembly Configuration
Dual Ended Connectors
Overmolded
No
Product Name
MicroClasp
Single Ended
No
Connector to Connector
MicroClasp-to-MicroClasp
