  9. Rectangular Power Connector, 10 Contact(S), Male, Solder Terminal, Receptacle

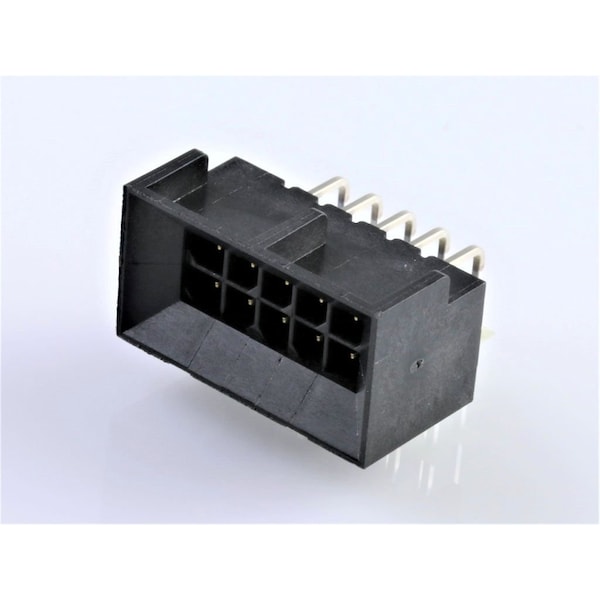

Molex Rectangular Power Connector, 10 Contact(S), Male, Solder Terminal, Receptacle 444281002 - main

Rectangular Power Connector, 10 Contact(S), Male, Solder Terminal, Receptacle

  • Mfr # 444281002

  • Zoro # G105910676

product price: $3.89
/ea
Sold in multiples of 25 for $97.25

Key Features

Color
Black
Number of Rows
2
Series
44428
Max. Voltage
600V
Application
Board-to-Board, Power, Wire-to-Board
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
444281002
Zoro #
G105910676
UPC #
-
Country of Origin
United States

Dimensions

Contact Plating Thickness
0.381 µm
PC Tail Length
3.50mm
PCB Thickness - Recommended
1.60mm

Details

Color
Black
Number of Rows
2
Series
44428
Max. Voltage
600V
Application
Board-to-Board, Power, Wire-to-Board
Features
Surface Mount Compatible
Terminal Type
Through Hole
Standards
CSA Certified; UL E29179
Material
High Temperature Thermoplastic
Hole Center to Center
3 mm
Max. Temp.
260°C
Contact Finish
Gold Plated
Flammability Rating
UL 94V-0
Current Rating
8.5 A
Number of Contacts
10
Terminal Finish
Tin Plated
Durability (mating cycles max)
30
Orientation
Right Angle
Material - Plating Mating
Gold
Polarized to PCB
Yes
Flammability
94V-0
Current - Maximum per Contact
8.5A
Glow-Wire Capable
No
Shrouded
Fully
Guide to Mating Part
No
Max-Cycle
1
UL
E29179
Material - Metal
Brass
Material - Plating Termination
Tin
Component Type
PCB Header
Max-Duration
5
Lock to Mating Part
Yes
Max-Temp
260
Keying to Mating Part
None
Plating min - Mating
0.381µm
Circuits (Loaded)
10
CSA
LR19980
Breakaway
No
PCB Locator
Yes
Temperature Range - Operating
-40° to +105°C
Material - Resin
Nylon
PCB Retention
Yes
Stackable
No
Pitch - Mating Interface
3.00mm
Product Name
Micro-Fit BMI
First Mate / Last Break
No
