  9. Rectangular Power Connector, 10 Contact(S), Male, Solder Terminal, Receptacle
This item is Discontinued.

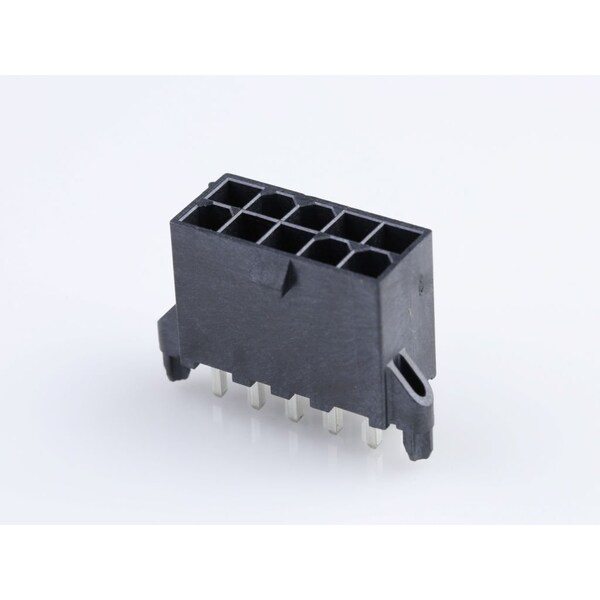

Molex Rectangular Power Connector, 10 Contact(S), Male, Solder Terminal, Receptacle 462070110

Rectangular Power Connector, 10 Contact(S), Male, Solder Terminal, Receptacle (Discontinued)

  • Mfr # 462070110
  • Zoro # G605910381
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
462070110
Zoro #
G605910381
UPC #
-
Country of Origin
Mexico

Dimensions

PCB Thickness - Recommended
2.36mm
PC Tail Length
4.46mm

Details

Color
Black
Number of Rows
2
Series
46207
Max. Voltage
600V AC/DC
Application
Board-to-Board, Power, Wire-to-Board
Max. Temp.
265°C
Hole Center to Center
4.2 mm
Standards
CSA Certified; UL E29179
Material
High Temperature Thermoplastic
Terminal Type
Through Hole
Features
Glow-Wire Capable; Surface Mount Compatible
Current Rating
13 A
Terminal Finish
Matte Tin Plated
Contact Finish
Matte Tin Plated
Number of Contacts
10
Flammability Rating
UL 94V-0
Shrouded
Fully
Lock to Mating Part
Yes
UL
E29179
PCB Retention
Yes
Product Name
Mini-Fit Jr.
Durability (mating cycles max)
100
Max-Cycle
3
Material - Resin
High Temperature Thermoplastic
First Mate / Last Break
No
Current - Maximum per Contact
13.0A
Max-Temp
265
PCB Locator
Yes
Guide to Mating Part
No
Material - Metal
Brass
Material - Plating Mating
Matte Tin
Orientation
Vertical
Temperature Range - Operating
-40° to +105°C
Material - Plating Termination
Matte Tin
Pitch - Mating Interface
4.20mm
Polarized to Mating Part
Yes
Component Type
PCB Header
Polarized to PCB
Yes
Glow-Wire Capable
Yes
Stackable
No
Flammability
94V-0
CSA
LR19980
Breakaway
No
Circuits (Loaded)
10
Voltage - Maximum
600V AC (RMS)/DC
Max-Duration
30
