  11. Rectangular Power Connector, 12 Contact(S), Female, Solder Terminal, Plug
This item is Discontinued.

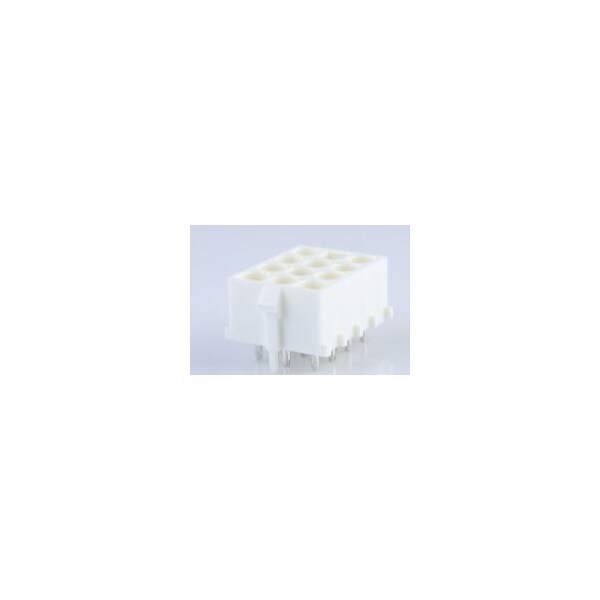

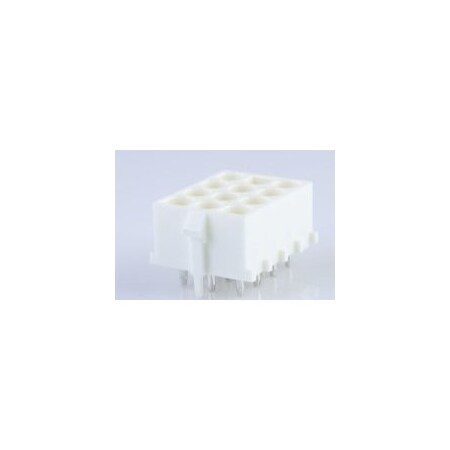

Molex Rectangular Power Connector, 12 Contact(S), Female, Solder Terminal, Plug 432550043

Rectangular Power Connector, 12 Contact(S), Female, Solder Terminal, Plug (Discontinued)

  • Mfr # 432550043
  • Zoro # G405964621
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
432550043
Zoro #
G405964621
UPC #
-
Country of Origin
India

Dimensions

PCB Thickness - Recommended
1.60mm
PC Tail Length
4.30mm

Details

Item
MLX
Color
White
Max. Voltage
600V
Maximum Voltage
600 V
Application
Board-to-Board, Power, Wire-to-Board
Series
43255
Standards
CSA Certified; UL E29179
Maximum Operating Temperature
260 Degrees C
UL 94 Flammability Rating
V-0
Material
Polyester
Number of Rows
3
Number of Contacts
12
Contact Finish
Tin Plated
Hole Center to Center
6.35 mm
Max. Temp.
260°C
Current Rating
20 A; 9 A
Terminal Type
Through Hole
Flammability Rating
UL 94V-0
Terminal Finish
Tin Plated
First Mate / Last Break
No
Stackable
No
Polarized to PCB
Yes
Keying to Mating Part
Yes
Flammability
94V-0
Shrouded
Fully
Material - Plating Mating
Tin
Component Type
PCB Header
UL
E29179
Circuits (Loaded)
12
Pitch - Mating Interface
6.35mm
Orientation
Vertical
Lock to Mating Part
Yes
Material - Metal
Phosphor Bronze
CSA
LR19980
PCB Locator
Yes
Polarized to Mating Part
Yes
PCB Retention
Yes
Breakaway
No
Max-Duration
10
Material - Plating Termination
Tin
Glow-Wire Capable
No
Durability (mating cycles max)
50
Temperature Range - Operating
-55° to +105°C
Current - Maximum per Contact
20.0A, 9.0A
Max-Temp
260
Product Name
MLX
Material - Resin
Polyester
