This item is Discontinued.

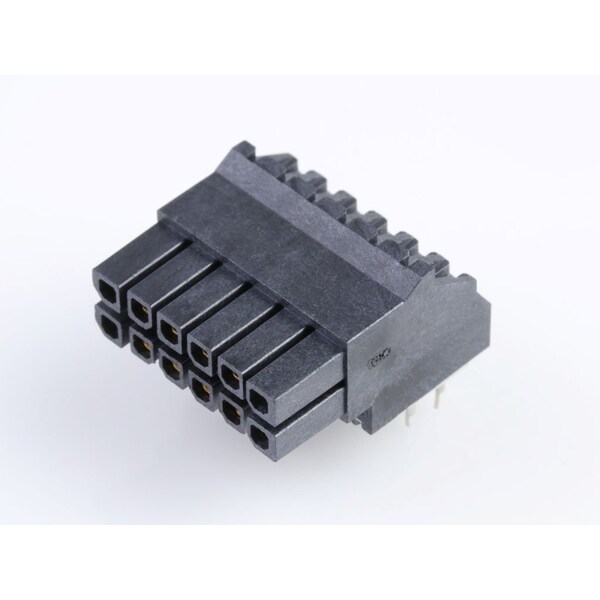

Molex Rectangular Power Connector, 12 Contact(S), Female, Solder Terminal, Receptacle 447641202

Rectangular Power Connector, 12 Contact(S), Female, Solder Terminal, Receptacle (Discontinued)

  • Mfr # 447641202
  • Zoro # G505910504
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
447641202
Zoro #
G505910504
UPC #
-
Country of Origin
United States

Dimensions

Contact Plating Thickness
0.381 µm
PCB Thickness - Recommended
1.60mm

Details

Number of Rows
2
Series
44764
Max. Voltage
600V
Application
Board-to-Board, Power, Wire-to-Board
Max. Temp.
260°C
Terminal Type
Through Hole
Material
Phosphor Bronze
Standards
CSA Certified; UL E29179
Hole Center to Center
3 mm
Features
Surface Mount Compatible
Current Rating
8.5 A
Terminal Finish
Tin Plated
Number of Contacts
12
Flammability Rating
UL 94V-0
Contact Finish
Gold Plated
Pitch - Mating Interface
3.00mm
Plating min - Mating
0.381µm
PCB Locator
Yes
UL
E29179
Material - Plating Termination
Tin
Flammability
94V-0
Current - Maximum per Contact
8.5A
Material - Plating Mating
Gold
PCB Retention
Yes
Orientation
Right Angle
Polarized to PCB
Yes
Product Name
Micro-Fit BMI
Max-Duration
5
Durability (mating cycles max)
30
Max-Cycle
1
Component Type
PCB Receptacle
Temperature Range - Operating
-40° to +105°C
CSA
LR19980
Circuits (Loaded)
12
Max-Temp
260
Glow-Wire Capable
No
