  9. Rectangular Power Connector, 12 Contact(S), Female, Solder Terminal, Receptacle
This item is Discontinued.

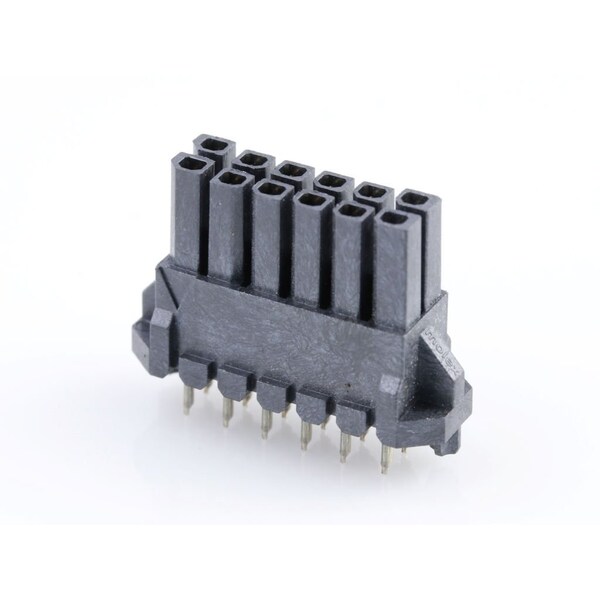

Molex Rectangular Power Connector, 12 Contact(S), Female, Solder Terminal, Receptacle 447691202

Rectangular Power Connector, 12 Contact(S), Female, Solder Terminal, Receptacle (Discontinued)

  • Mfr # 447691202
  • Zoro # G205910682
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
447691202
Zoro #
G205910682
UPC #
-
Country of Origin
United States

Dimensions

Contact Plating Thickness
0.381 µm
PCB Thickness - Recommended
1.57mm
PC Tail Length
3.40mm

Details

Color
Black
Number of Rows
2
Series
44769
Max. Voltage
250V
Application
Board-to-Board, Power, Wire-to-Board
Terminal Type
Through Hole
Hole Center to Center
3 mm
Standards
CSA Certified; UL E29179
Max. Temp.
260°C
Features
Surface Mount Compatible
Material
Liquid Crystal Polymer
Flammability Rating
UL 94V-0
Number of Contacts
12
Contact Finish
Gold Plated
Current Rating
8.5 A
Terminal Finish
Tin Plated
PCB Retention
Yes
Durability (mating cycles max)
30
Max-Cycle
1
Flammability
94V-0
Orientation
Vertical
Max-Duration
5
Circuits (Loaded)
12
Material - Plating Termination
Tin
Pitch - Mating Interface
3.00mm
Glow-Wire Capable
No
Polarized to PCB
Yes
Polarized to Mating Part
Yes
Product Name
Micro-Fit BMI
Plating min - Mating
0.381µm
PCB Locator
Yes
Material - Resin
Liquid Crystal Polymer
CSA
LR19980
Material - Metal
Phosphor Bronze
UL
E29179
Current - Maximum per Contact
8.5A
Max-Temp
260
Component Type
PCB Receptacle
Temperature Range - Operating
-40° to +105°C
Material - Plating Mating
Gold
